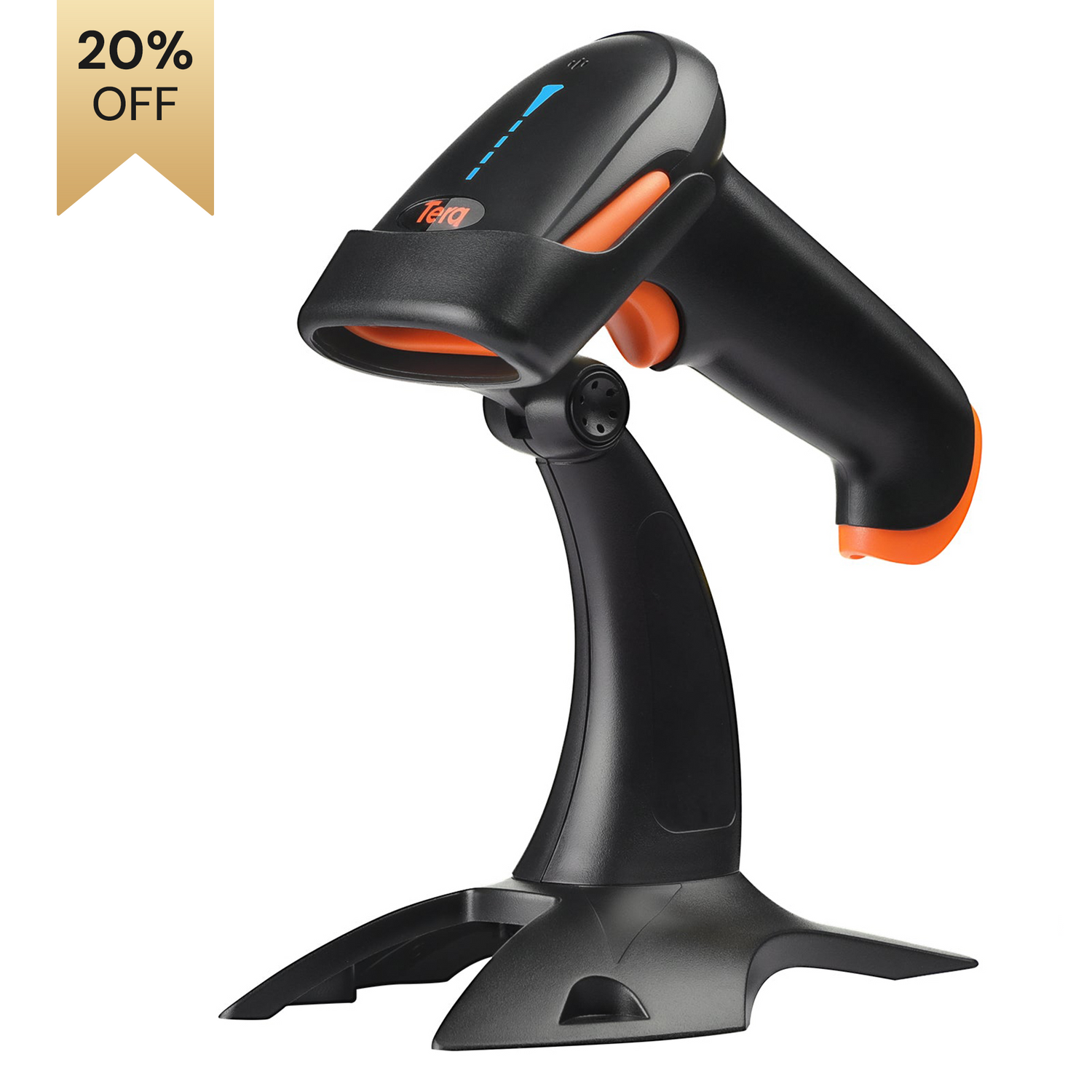

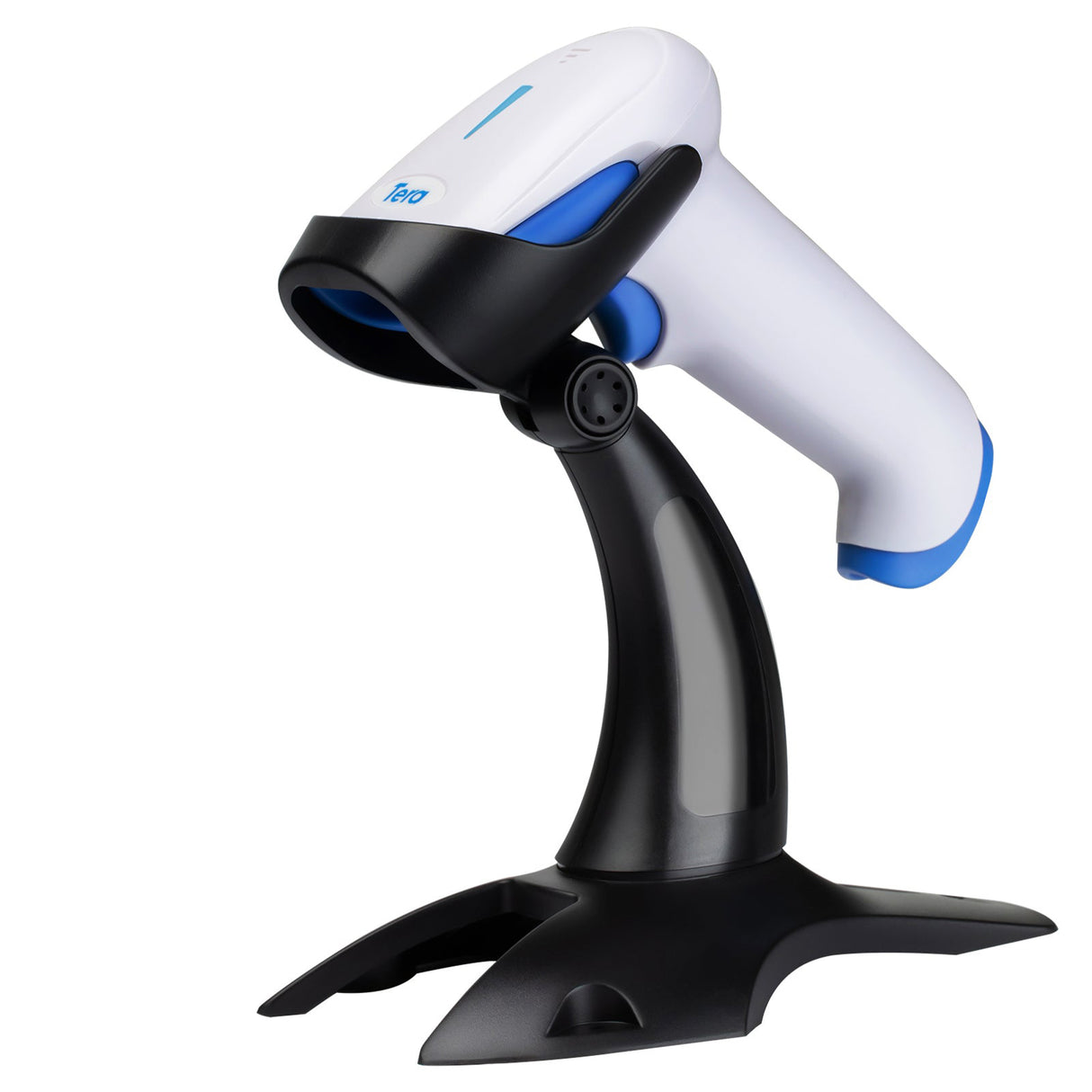

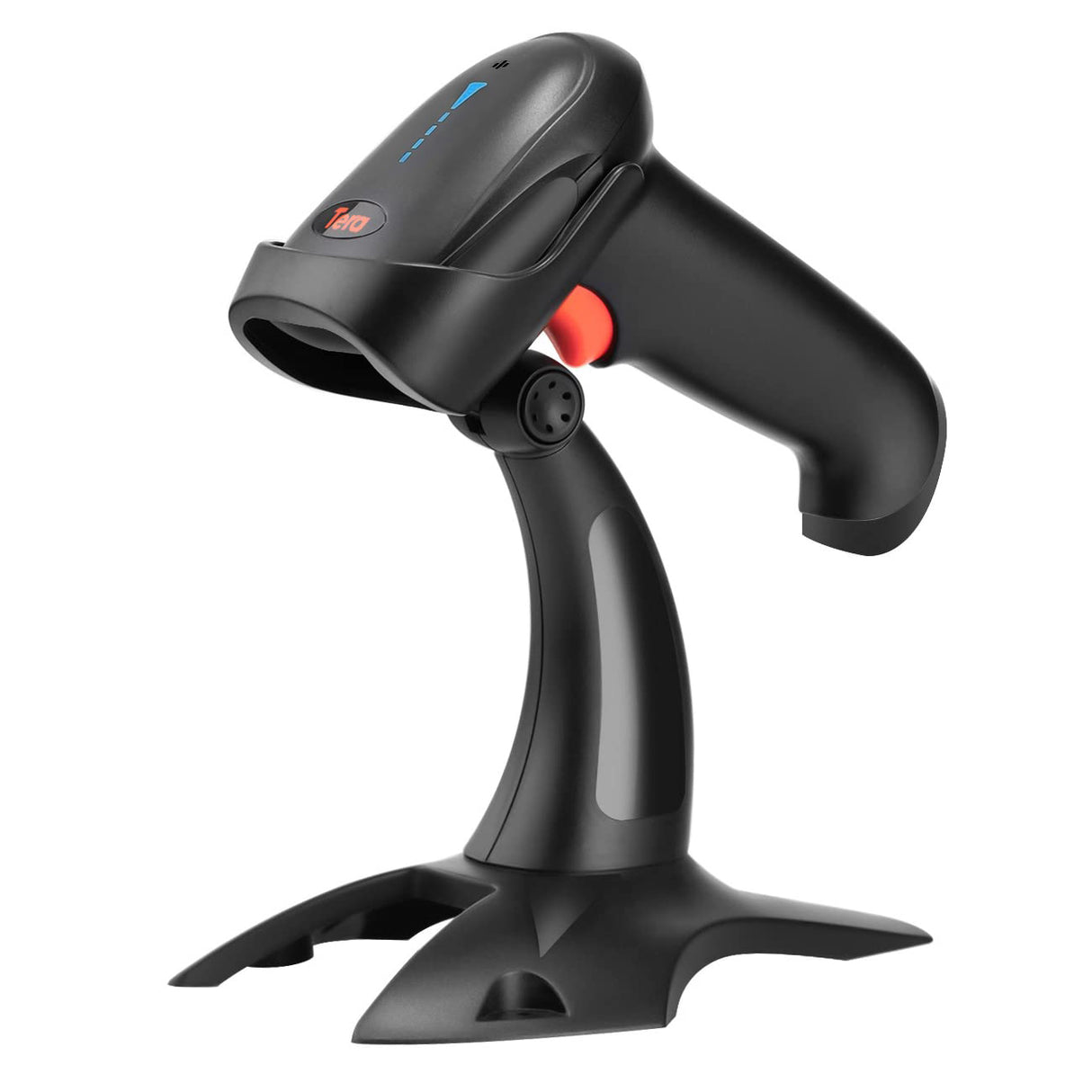

HW0002 2D Wireless Barcode Scanner
HW0002 2D Wireless Barcode Scanner
Couldn't load pickup availability
Request Quote for Best Pricing

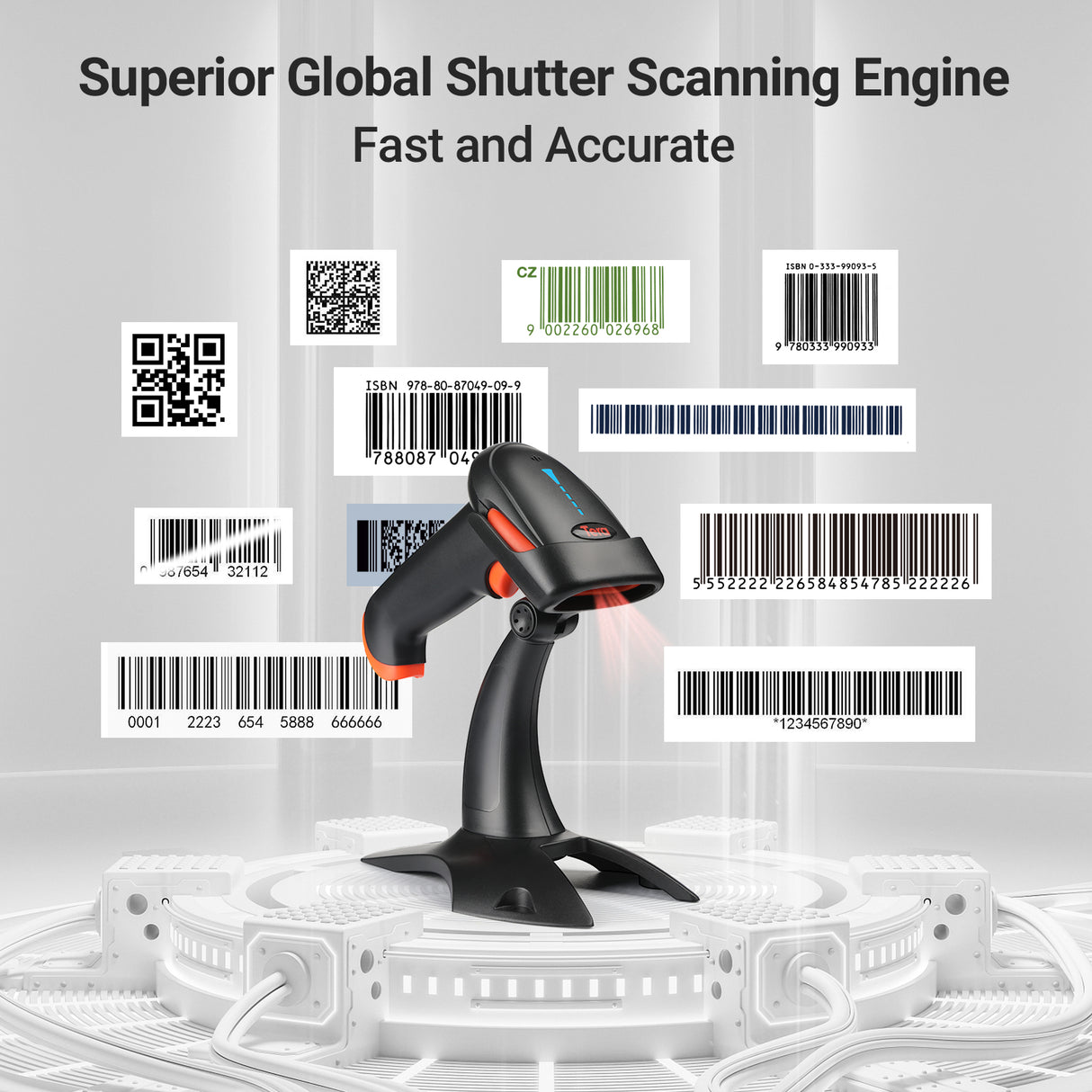

- 【Global Shutter Superior 2D Decoding】Global shutter 2D scanner provides you a better scanning experience than normal QR code scanners.
- 【Vibration Alert】In addition to the buzzer and LED light, when a scan is successful, you receive a tactile signal in the form of a mild vibration. Buzzer can be set to mute to allow for a quiet operation.

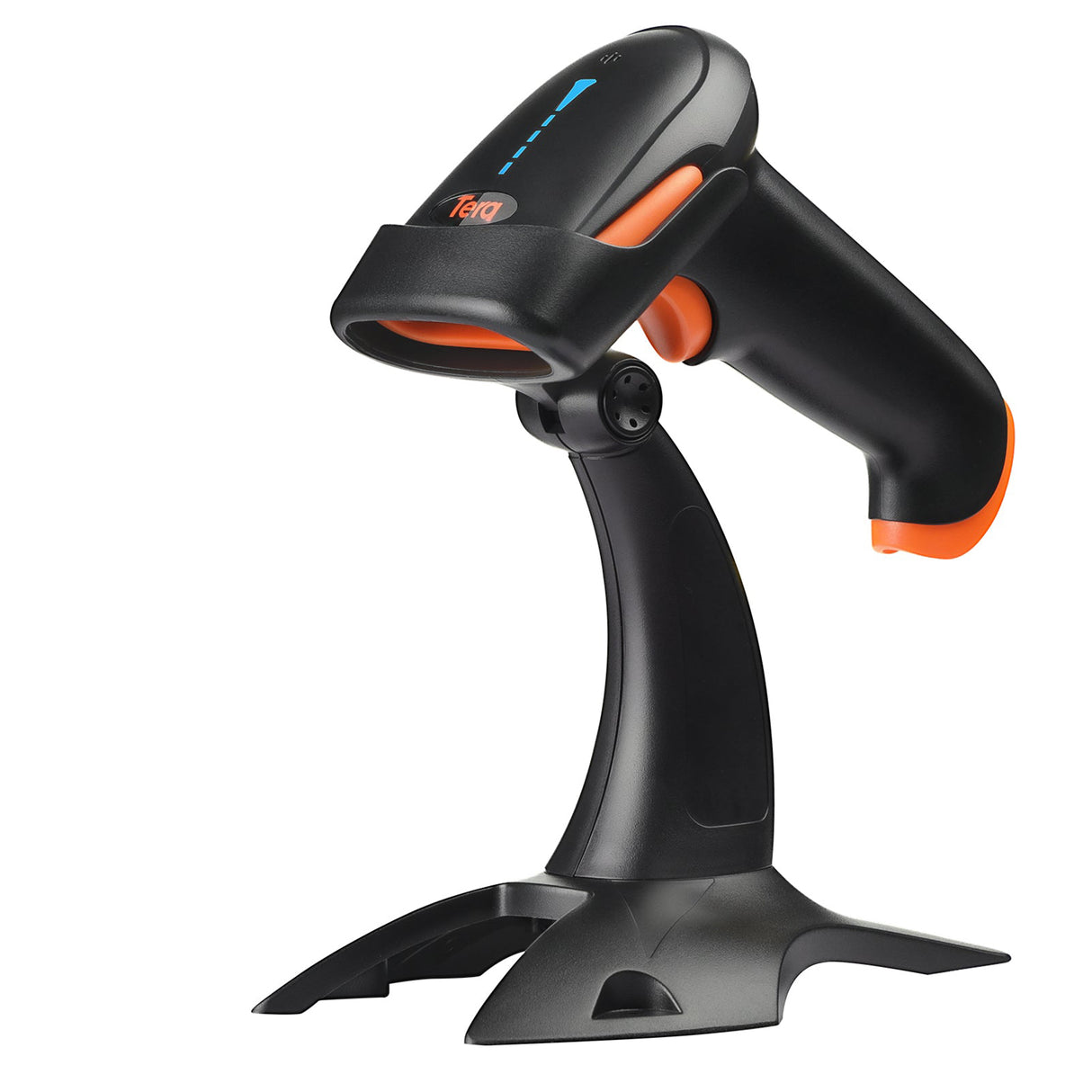

- 【Anti-Shock Silicone Design】The bright orange silicone protective cover can avoid scratches and friction while falling from your desk or the shelf.
- 【Various Compatible System】Supports Windows, Mac OS; works with QuickBooks, Word, Excel, Novell; and almost all common software.

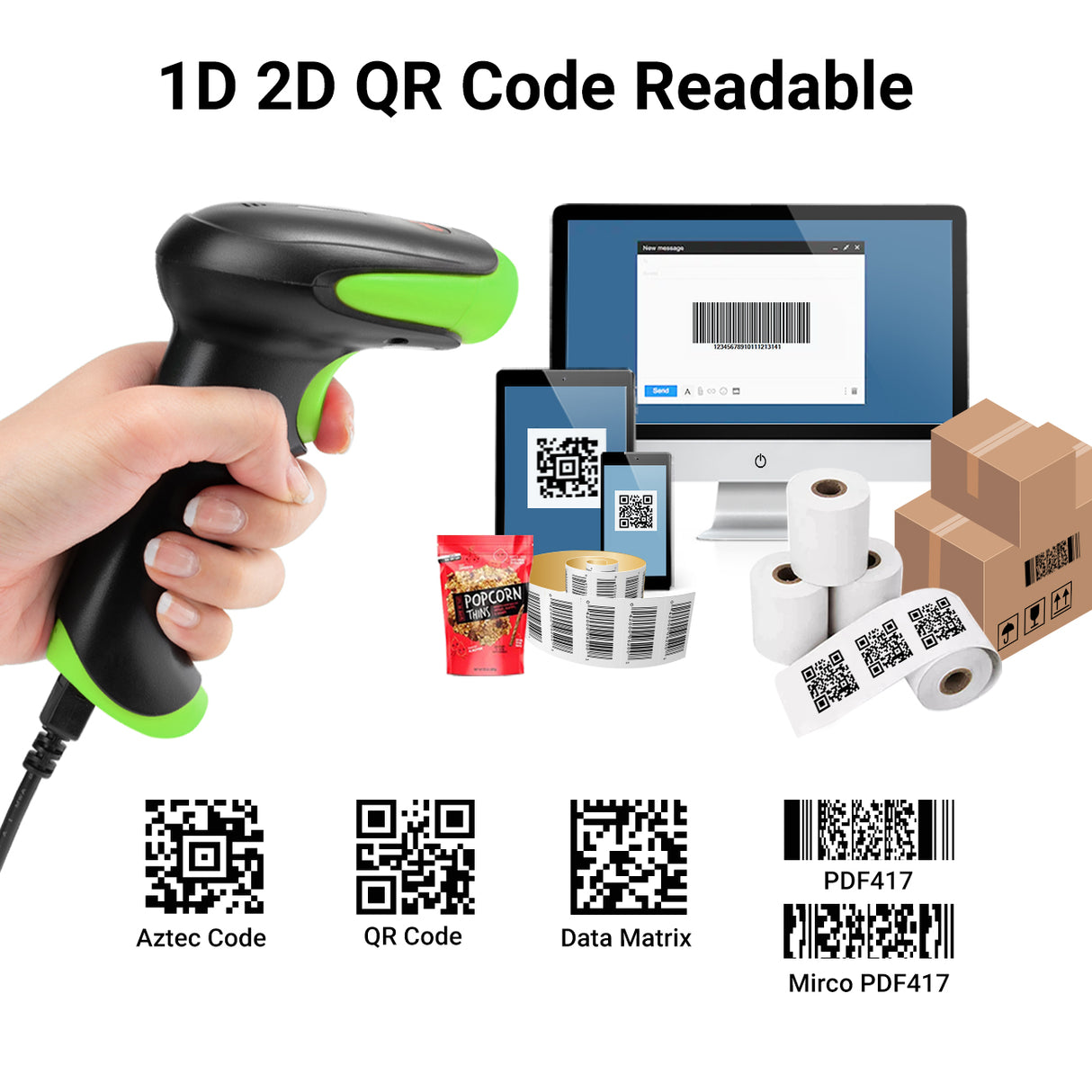

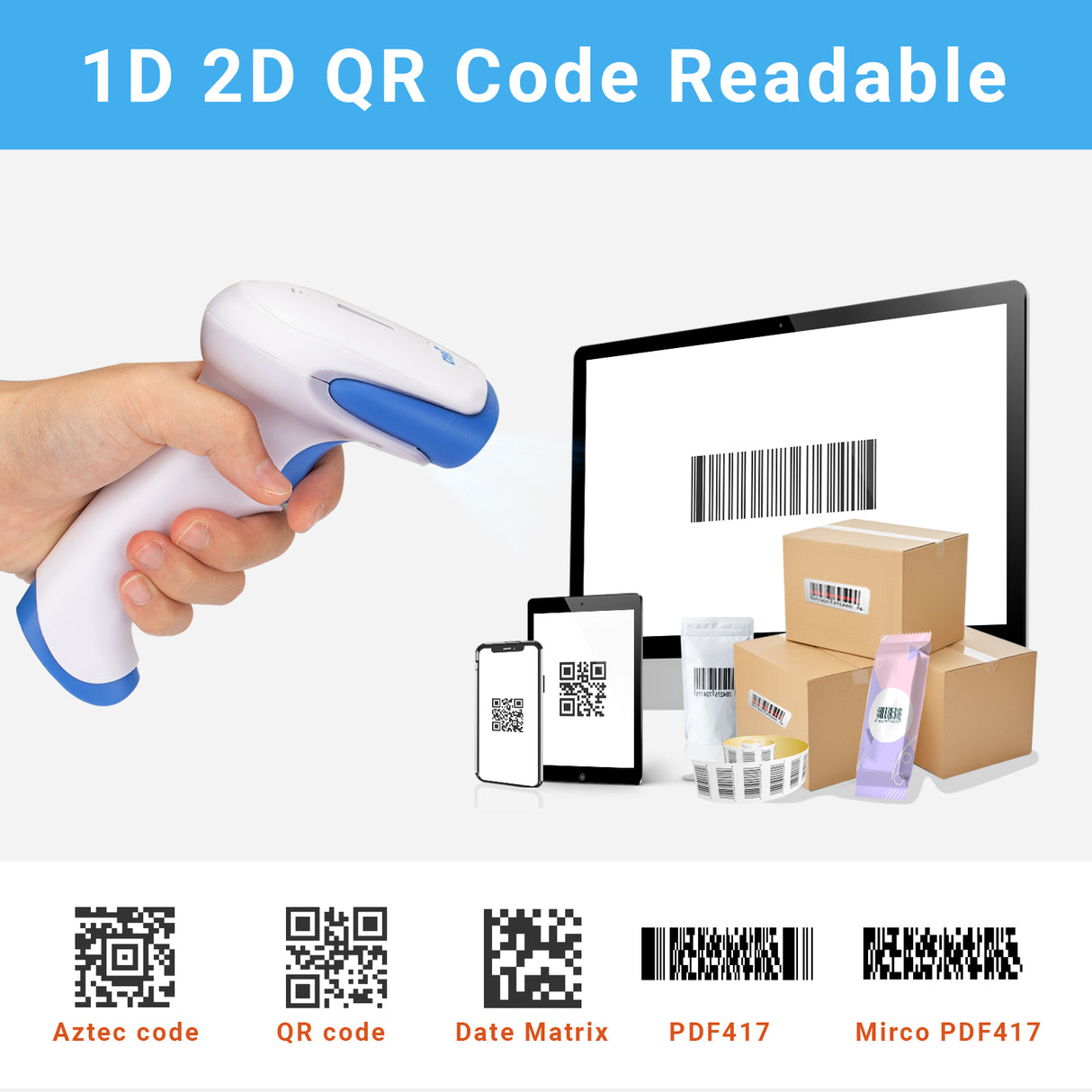

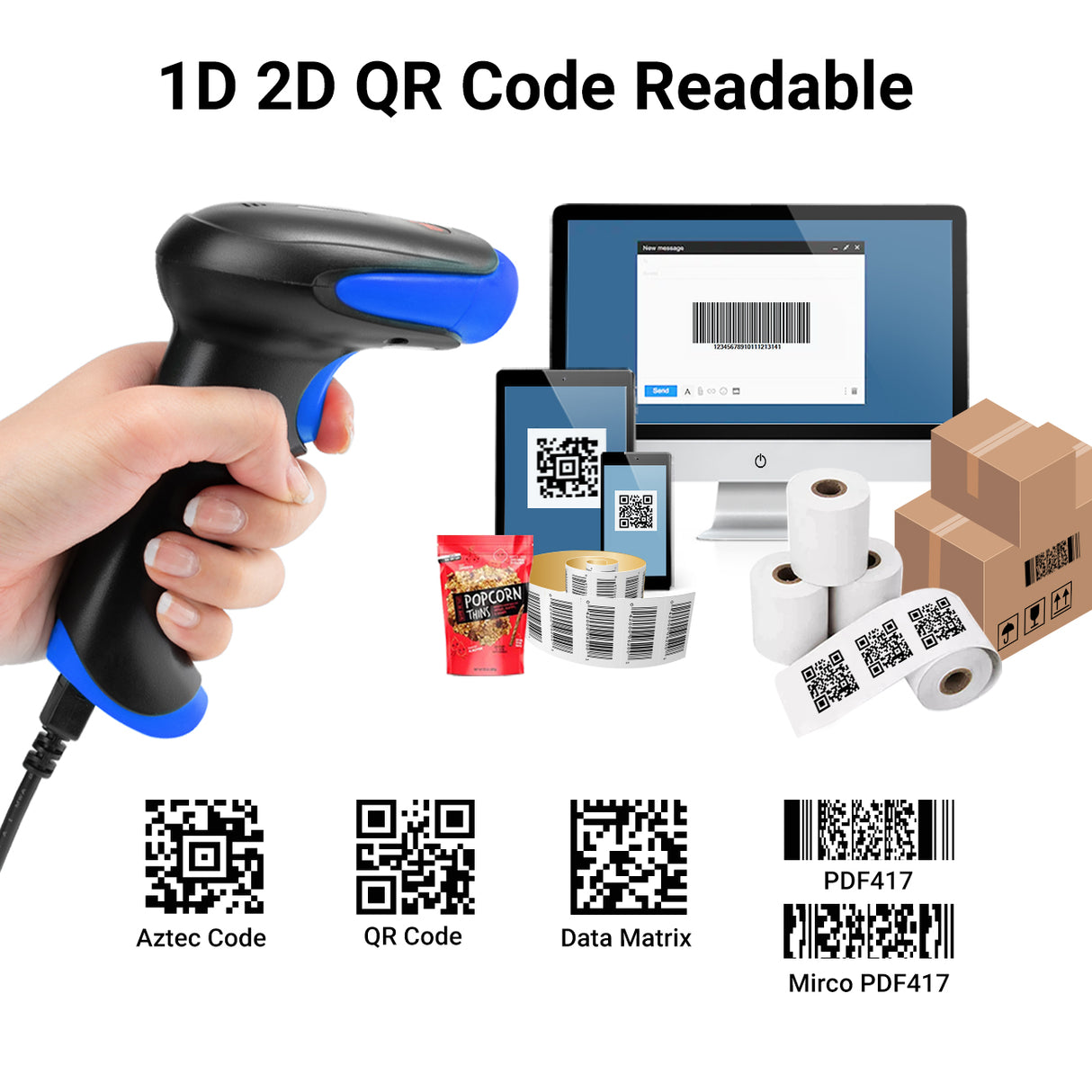

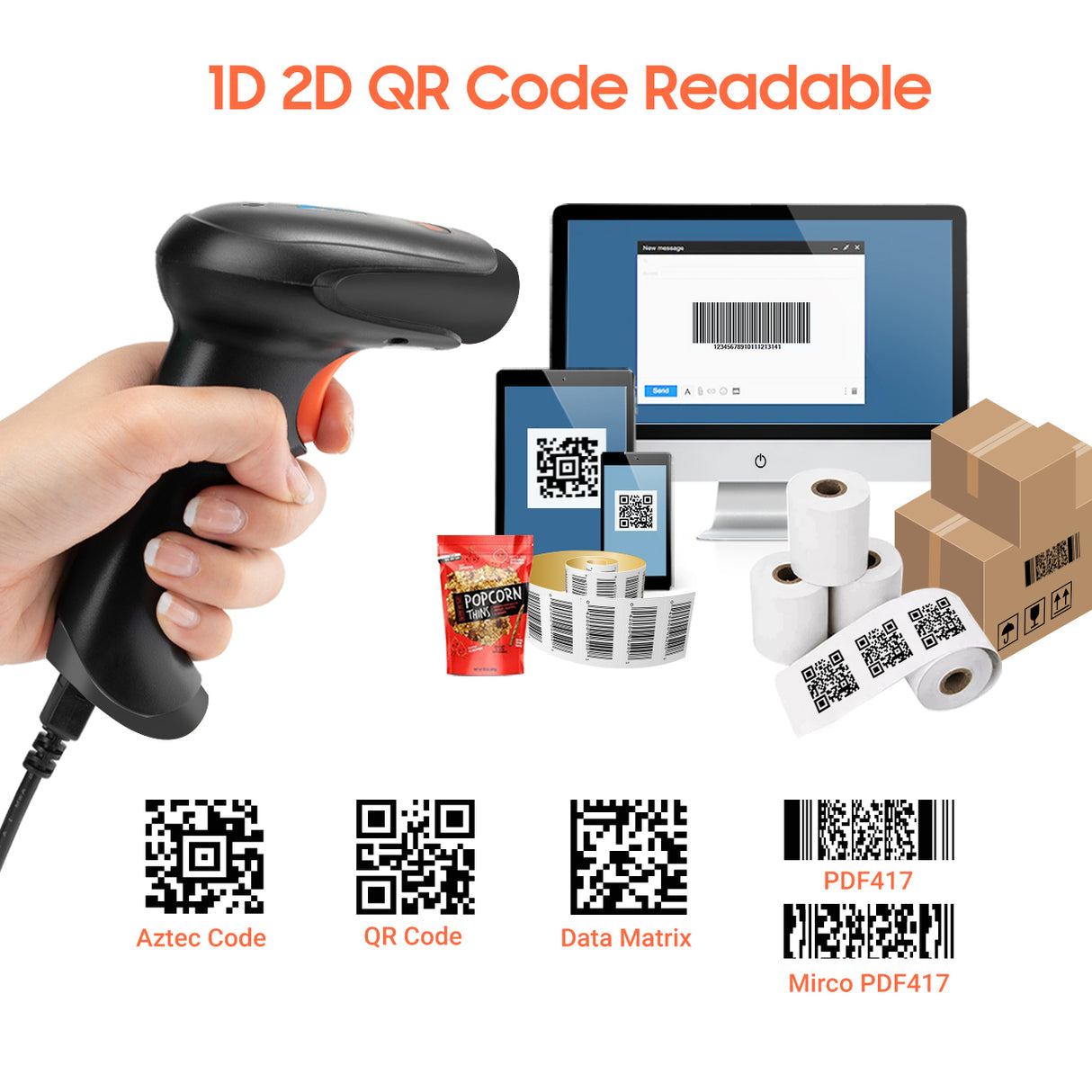

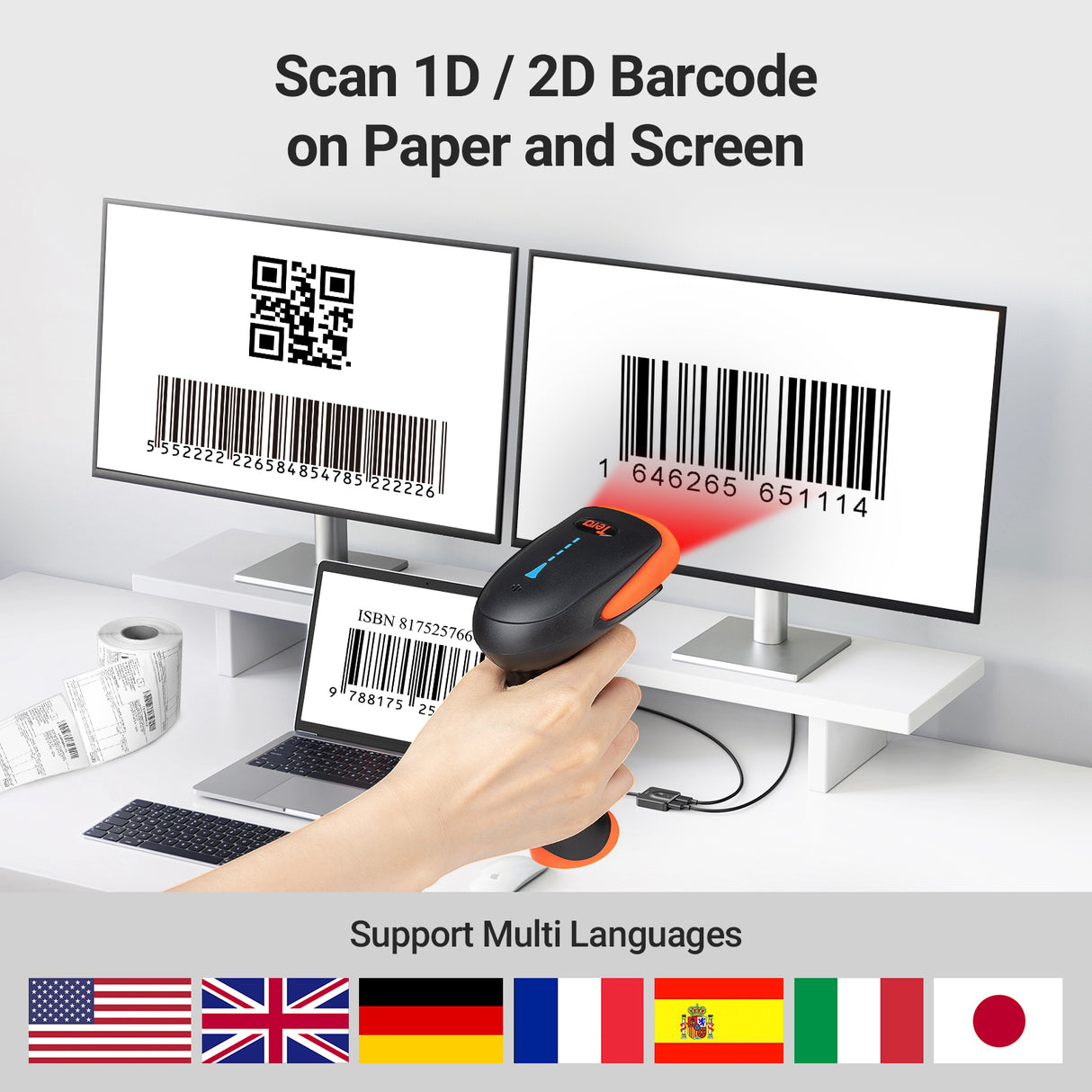

- 【Supported both Digital and Printed 1D 2D Code】Symbologies: 1D: Codabar, Code 11, Code93, MSI, Code 128, UCC/EAN-128, Code 39, EAN-8, EAN-13, UPC-A, ISBN, Industrial 25, Interleaved 25, Standard25, Matrix, etc. 2D: QR, DataMatrix, PDF417, Aztec, Hanxin, Micro PDF417, etc.
Specification
Scanning Specs
| Resolution | ≥3mil/0.076mm（PCS90%,CODE 39） |
| Depth of Scanning Field | 10mm~550mm（depends on diffrent type of barcode) |
| Scanning Angle - Roll | ±360° |
| Scanning Angle - Pitch | ±60° |
| Scanning Angle - Skew | ±55° |
| Decoding Capability | 1D & 2D Barcodes |
| Supported Barcode Types | 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5 (Straight 2 of 5), Standard 2 of 5 (IATA 2 of 5), Codabar (NW-7), MSI, GS1 Databar (Omnidirectional, Limited, Expanded), China Post, Tepepen, Febraban Brazilian bank code, GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, etc. |
Data Transmission

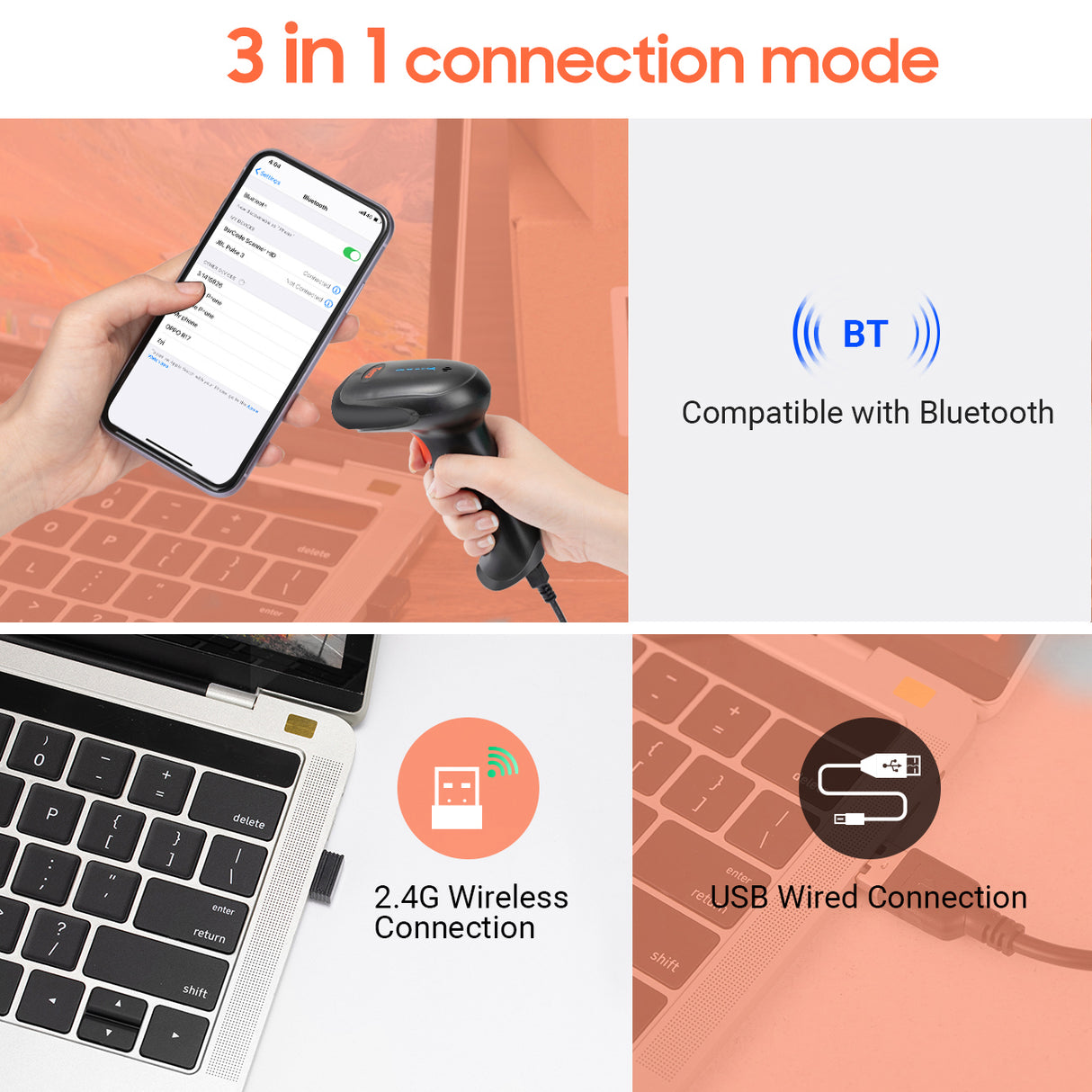

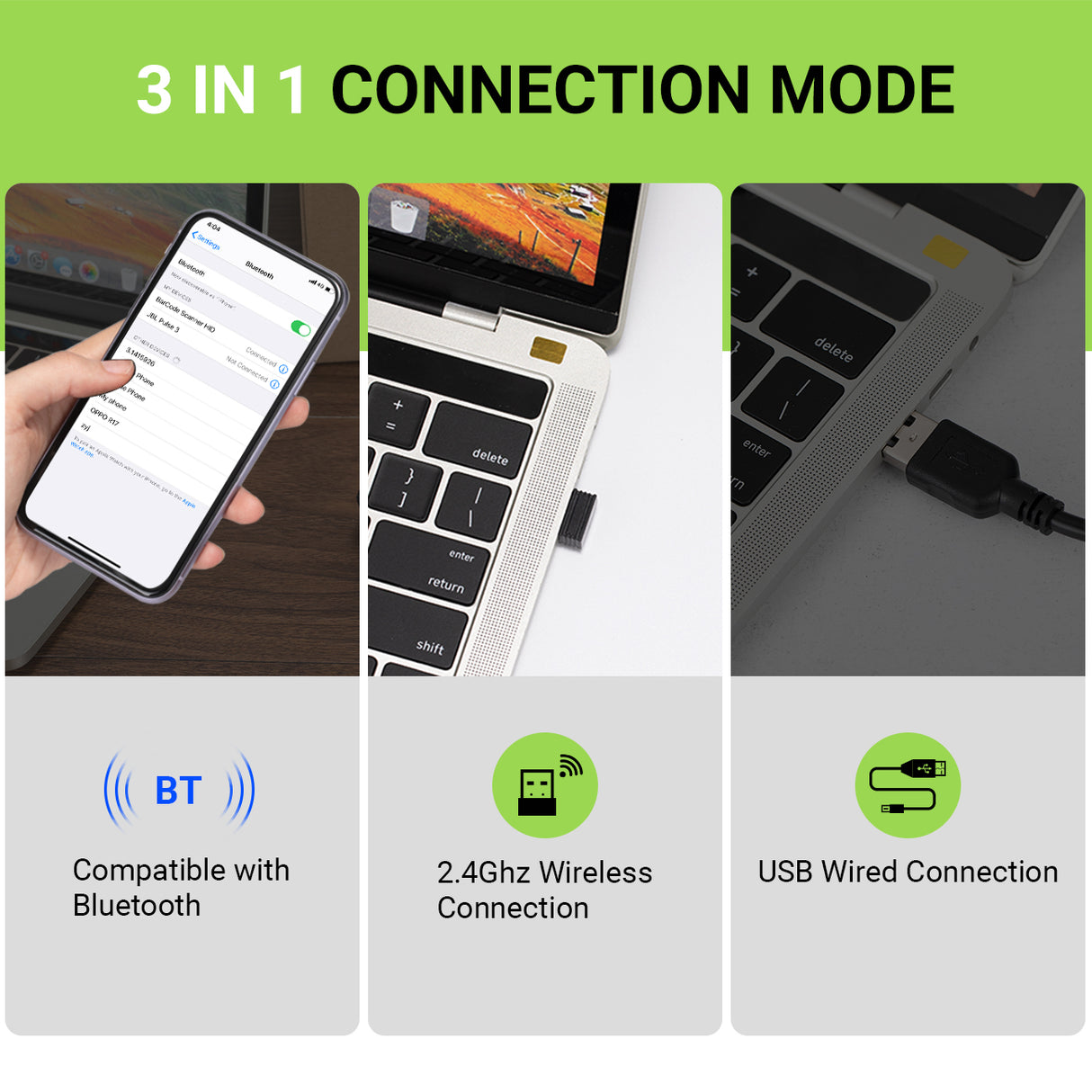

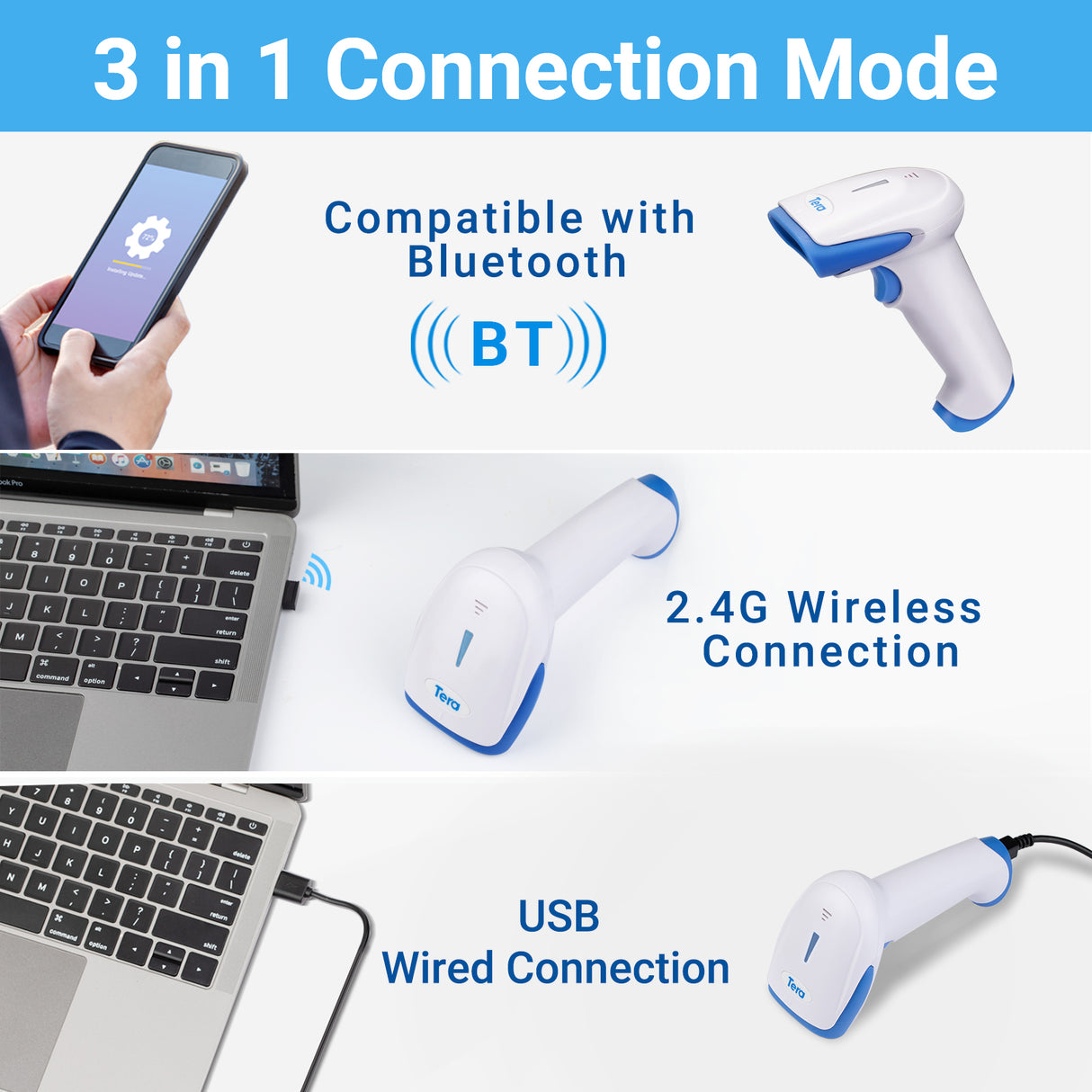

| Transmission Capability | Wired USB, Wireless 2.4G, Wireless Bluetooth (HID, SPP, BLE) |
| Wireless Transmission Distance | 2.4GHz,60meters（Open distance） |
| Bluetooth Transmission Distance | 10meter |
| Notification | LED indicator, buzzer |
Electrical
| Working Voltage | DC 5V |
| Working Current | 260mA（Average Work） |
| Battery Capacity | 2000mAh |
| Charging Requirement | Maximum 5V 1A |
| Charging Time | About 5 hours |
| Working Time | ≥ 16 hours |
Environmental
| Working Temperature | 0℃ to 50℃ |
| Storage/Transportation | -30℃ to 60℃ |
| Humidity | 5% to 95% (non-condensing) |
Functions
| Beeper Volumn ON/OFF | √ |
| Beeper Volumn UP/DOWN | √ |
| Inverse Barcodes | √ |
| Character Case Conversion | √ |

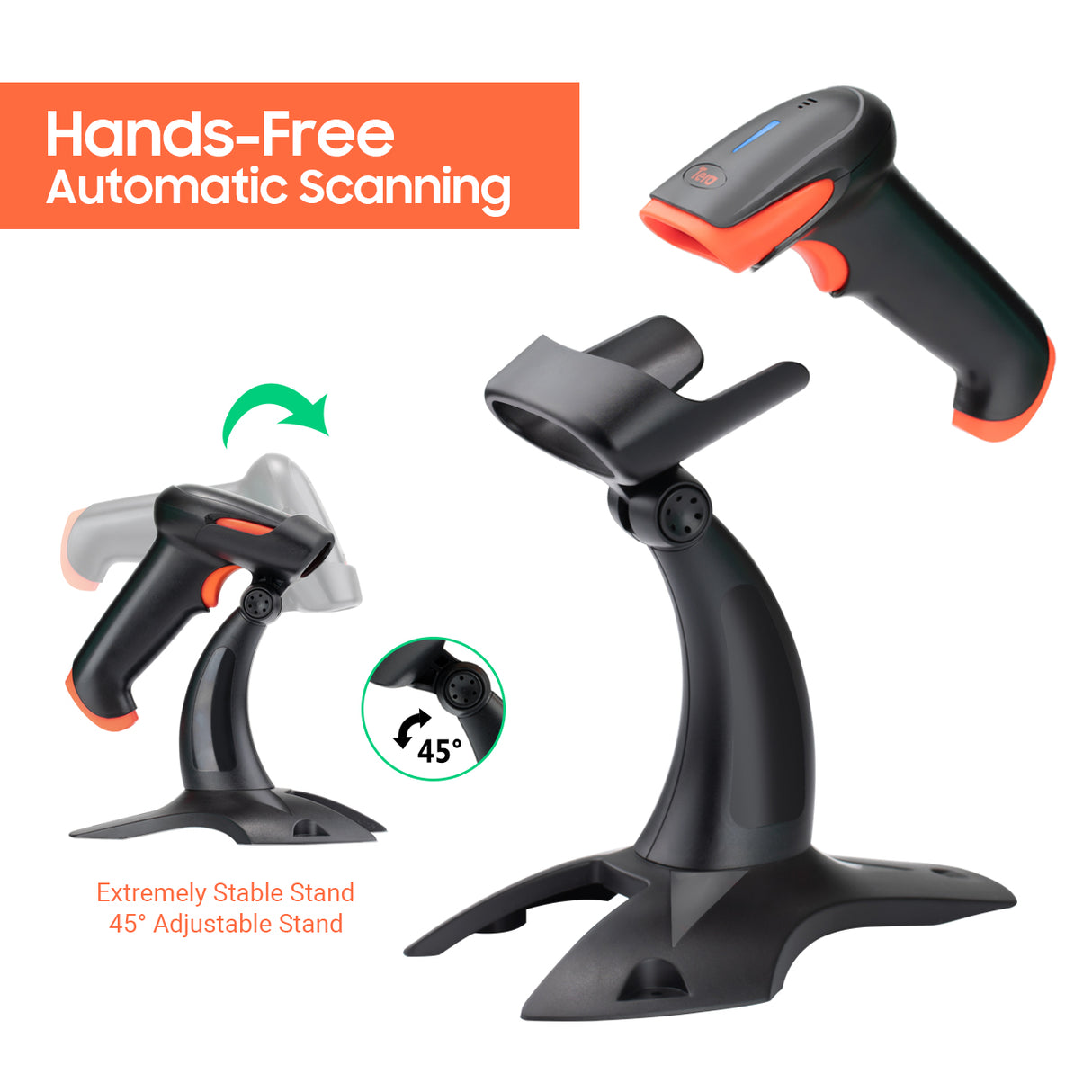

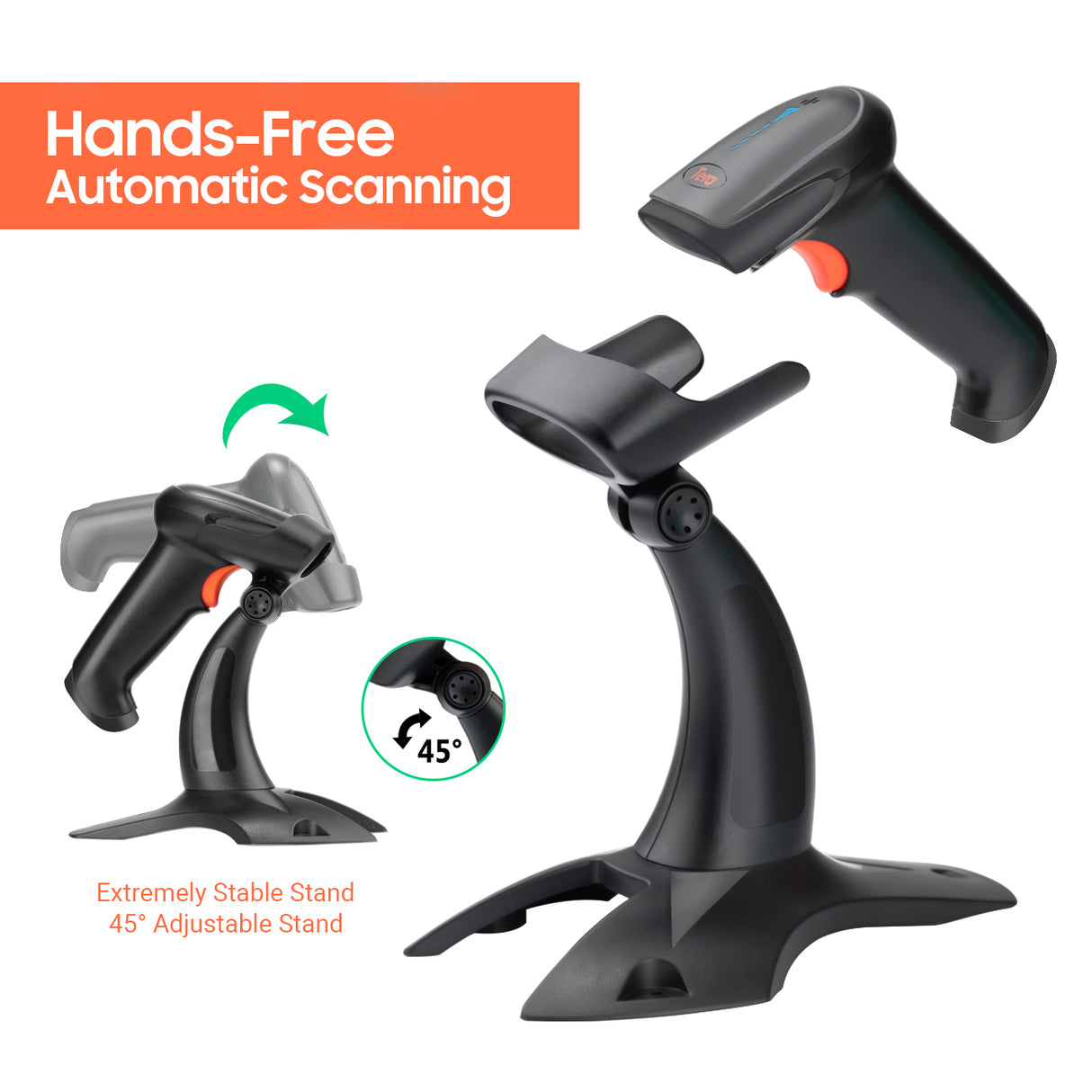

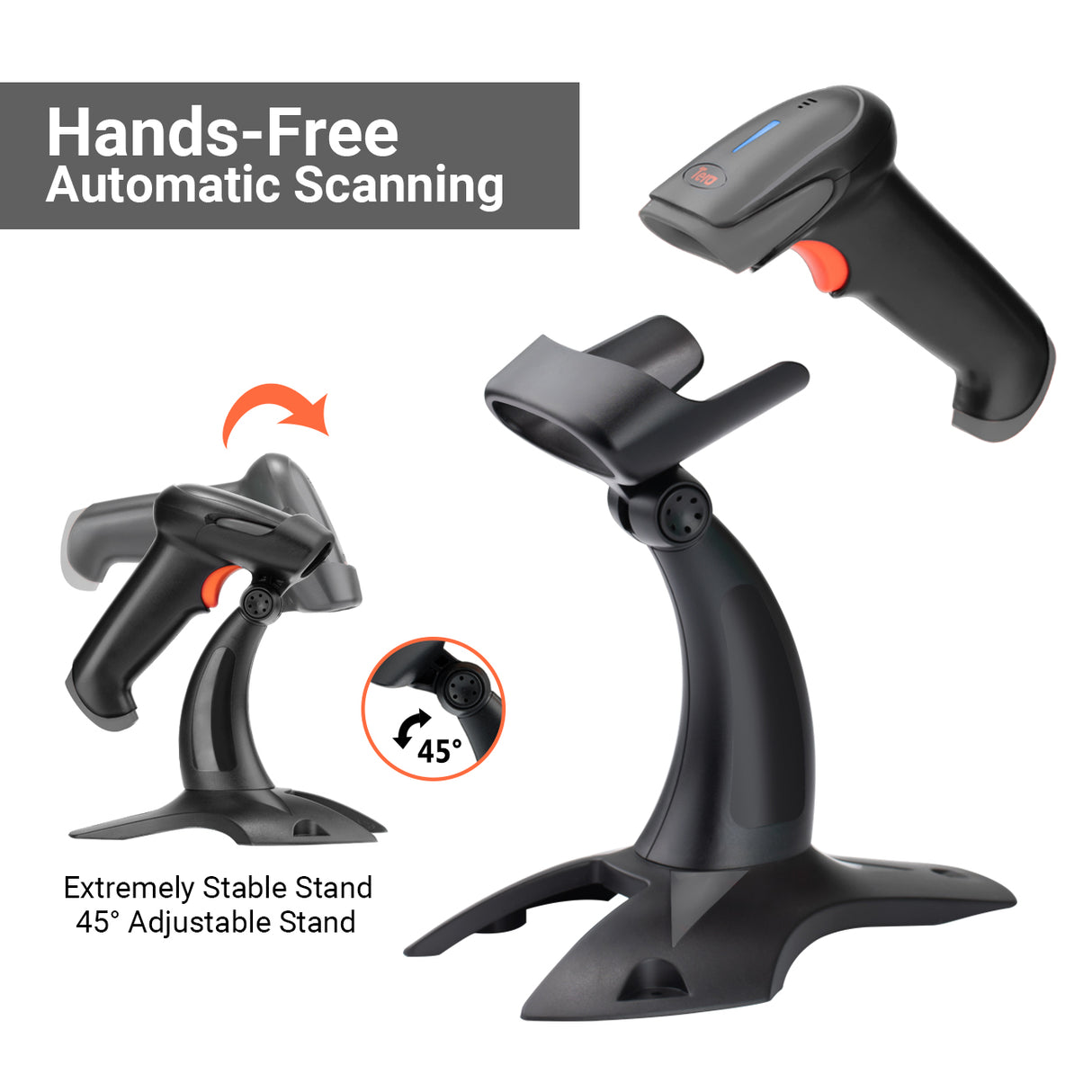

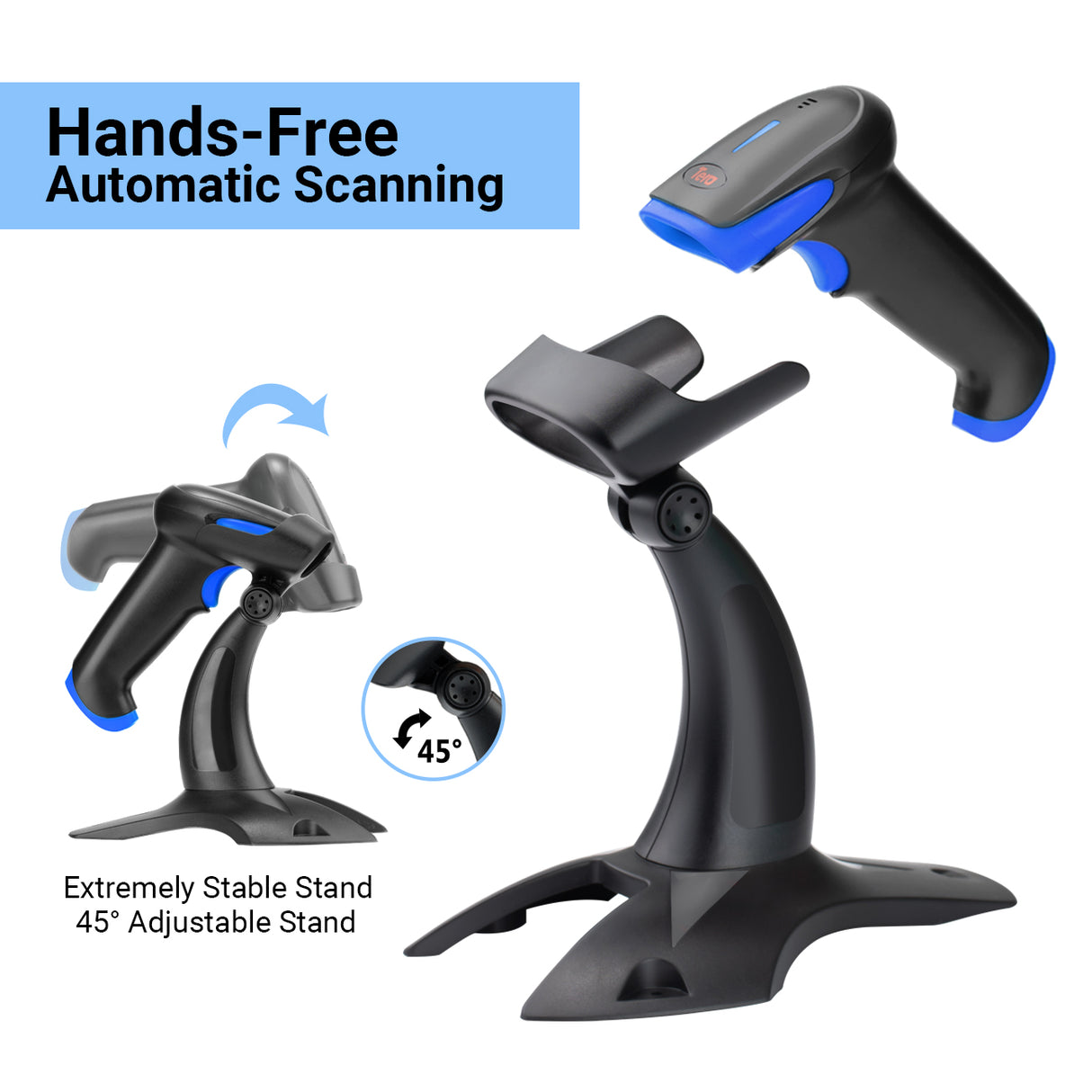

| Scanning Mode | Manual Trigger Mode, Continuous Scanning Mode, Sensor Activated Mode |
| USB-COM / Virtual Port | √ |

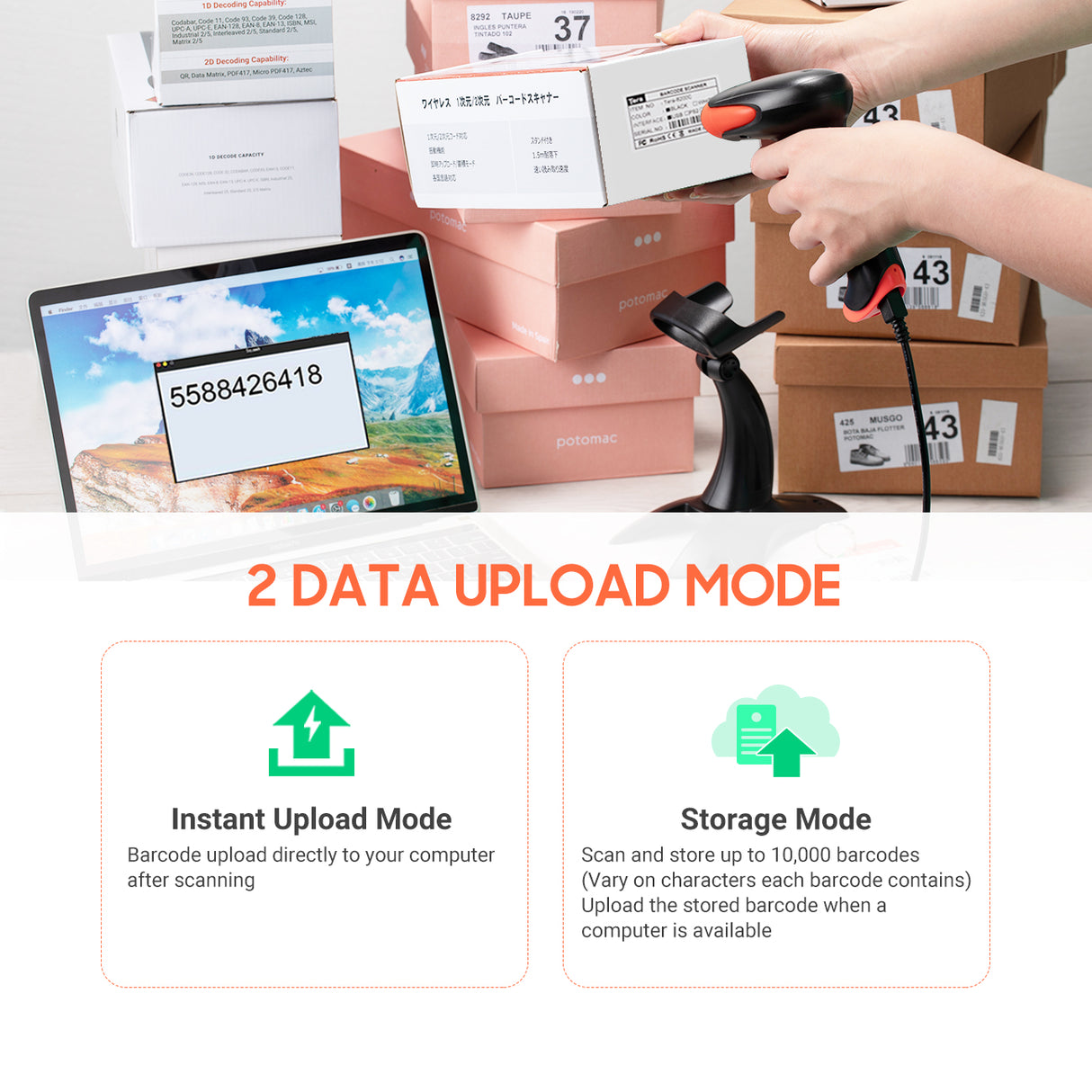

| Storage Mode | √ |
| Add Prefix/Suffix | √ |
| Hide Prefix/Suffix | √ |
| GS Replacement | √ |

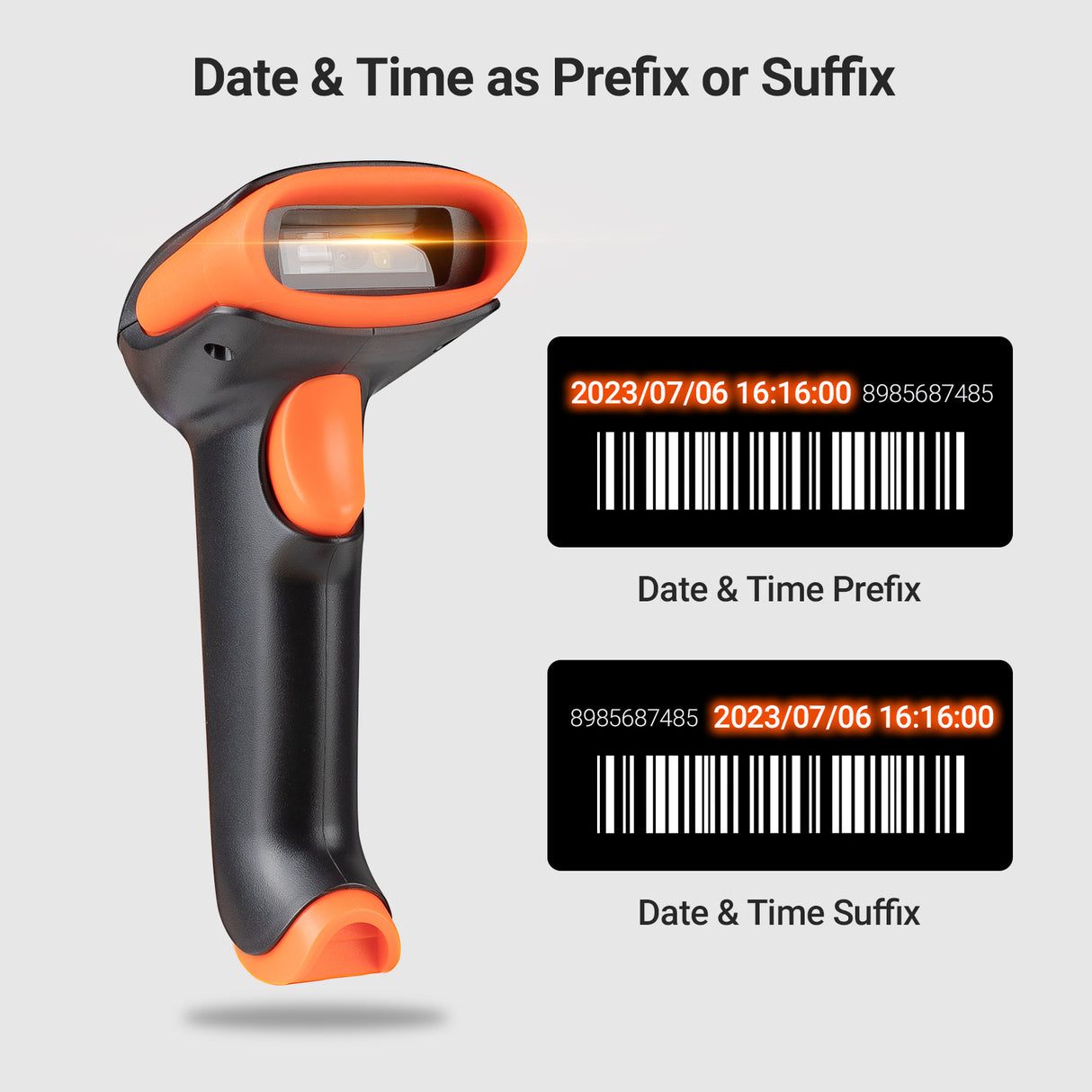

| Time Stamp | √ |
| Terminator | √ |
user manual
| Name | Date | Size | |
| English User Manual | 2 Nov 2022 | PDF 6.4MB |  |
| Deutsche Bedienungsanleitung | 2 Nov 2022 | PDF 6.54MB | |
| Manuel d'utilisation en français | 2 Nov 2022 | PDF 7.21MB | |
| Manuale d'uso italiano | 2 Nov 2022 | PDF 6.27MB | |
| Manual de usuario en español | 2 Nov 2022 | PDF 7.25MB | |
| 説明書Model-EV0031-3-日本語 | 9 Sep 2021 | PDF 12MB | |
