HW0006 2D Wireless Barcode Scanner with Display Screen
HW0006 2D Wireless Barcode Scanner with Display Screen
Couldn't load pickup availability
Features:
- LED screen-clearing showing scanning status: the connection mode; the battery level; current time; barcode information; total stored barcodes.
- Charger/Stand/Receiver 3-in-1 Base; Bluetooth, wireless 2.4G and wired connection
- Support 1D 2D QR paper and digital codes; 16M large capacity storage; Support storage mode & instant upload mode.
- With 2200mAh battery, the standby time can be up to 15 days;
- Support keyboard language setting; Time can be added to each barcode you scan
Tera Wireless 1D/2D/QR Bluetooth Barcode Scanner with Screen
Fully upgraded Version!
1. High-pixel Camera: Support scanning 1D long barcodes and identify smaller 2D QR barcodes more accurately.
2. Updated Processor Chip: the latest high-precision chip can make the scanning speed faster.
3. Fully Upgraded Software Algorithm: German design professional technology realizes super high resolution.
4. Exquisite Patented Appearance: More beautiful head cover design and screen with patented design
Note: Not Compatible with Square POS system
Note: When the scan result is different from the actual number (e.g. extra characters appearing at the front), conditionally, the barcode itself is as it's scanned. It's not the quality or scanning issue of the scanner itself. Tera scanners can be modified with a setting code to hide the extra characters, please see the manual or consult us for details.
3 in 1 Connection
- Works with Bluetooth
- 2.4G Wireless Connection
- USB 2.0 Wired Transmission and Charging

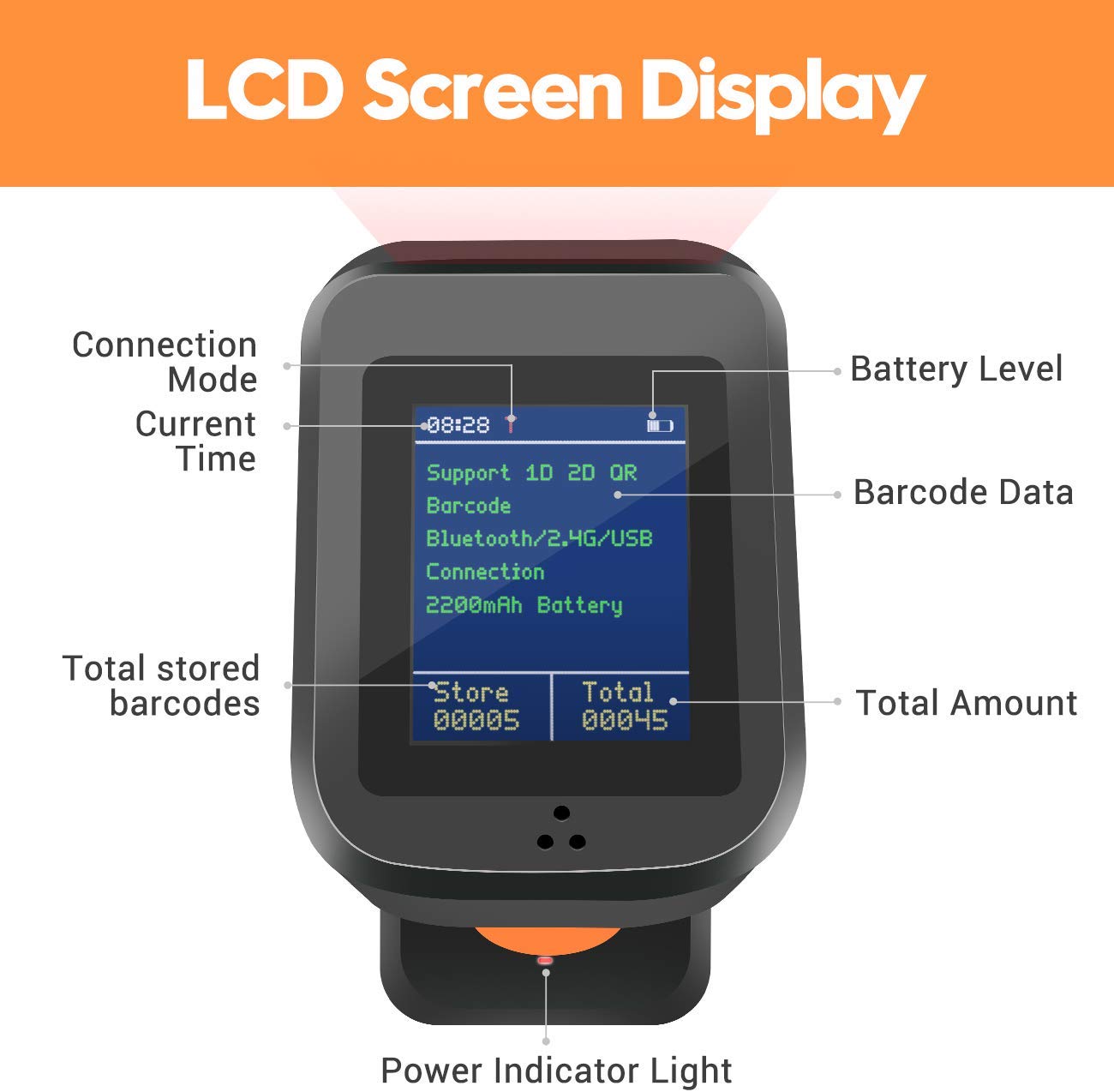

LCD Screen Display Content
- The connection mode.
- The battery level
- Current time
- Barcode information
- Total stored barcodes
Support Barcode Type
- 1D Barcode: UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code 39Full ASCII,Codabar, Industrial 2 of 5, Interleaved 2 of 5, Code93, MSI, Code11, ISBN, ISSN, China Post, GS1 Databar, Code32, etc.
- 2D Barcode: QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc.
- Can read both normal and inverted(white barcode on black background) barcode
- NOTE: Can’t read PDF417 barcode on the driver license. Does not support scanning up USPS intelligent mail barcodes (also known as USPS4CB)
2 Kinds of Scan Mode
- Key Trigger Mode:scanning barcodes by pressing the trigger provides fast accurate reading speed.
- Continuous Scanning Mode:set up continuous scan mode for quick scanning without pressing any buttons with the base which provide hands-free. （Please Note: You need to scan a setting barcode to enter continuous mode）
- Supports multiple languages including English, Spanish, German, French, Italian, Japanese, etc.
- To make sure the barcodes output correctly, please make sure the scanner's language aligned with your computer's keyboard language. The scanner's factory default language is English.
Other Functions
- Time can be added to each barcodes you scan
- Add prefix and suffix
- Hide characters
- Identity barcode type
- Support keyboard language setting
- Voice setting
- Support uppercase/lowercase setting
Specification
Scanning Specs
| Resolution | ≥4mil/0.10mm@PCS90% |
| Depth of Scanning Field | NA |
| Scanning Angle - Roll | ±360° |
| Scanning Angle - Pitch | ±65° |
| Scanning Angle - Skew | ±60° |
| Decoding Capability | 1D & 2D Barcodes |
| Supported Barcode Types | 1D：EAN-8, EAN-13, Codabar, CODE 39, CODE 93, CODE 128, China Post, GS1-128, UPC-A, UPC-E, UCC/EAN 128, ISBN/ISSN, ISBT , Interleaved 2 of 5，Standard 2 of 5, Matrix 2 of 5，Industrial 2 of 5 , MSI, RSS, ITF14, Telepen, etc. 2D(optional)：QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF417, Maxicode, Aztec, Hanxin, etc. |
Data Transmission
| Transmission Capability | Wired USB, Wireless 2.4G, Bluetooth |
| Wireless Transmission Distance | 2.4GHz, >150meters(optional) |
| Bluetooth Transmission Distance | Bluetooth >20meters(optional) |
| Notification | LED indicator light, buzzer, vibration, LCD backlight |
Electrical
| Working Voltage | DC 5V |
| Working Current | 60mA（Average Work） |
| Battery Capacity | 1800mAh |
| Charging Requirement | Maximum 5V 1A |
| Charging Time | less than 3hours |
| Working Time | 48hours |
Environmental
| Working Temperature | 0℃ to 50℃(working) |
| Storage/Transportation | -40℃ to 60℃(storage) |
| Humidity | 5% to 95% (non-condensing) |
Functions
| Beeper Volumn ON/OFF | √ |
| Beeper Volumn UP/DOWN | × |
| Inverse Barcodes | √ |
| Character Case Conversion | √ |
| Scanning Mode | Manual Trigger Mode, Continuous Scanning Mode,Sensor Activated Mode |
| USB-COM / Virtual Port | √ |
| Storage Mode | √ |
| Add Prefix/Suffix | √ |
| Hide Prefix/Suffix | √ |
| GS Replacement | √ |
| Time Stamp | √ |
| Terminator | √ |
