HW0005 2D Wireless Barcode Scanner
HW0005 2D Wireless Barcode Scanner
Couldn't load pickup availability

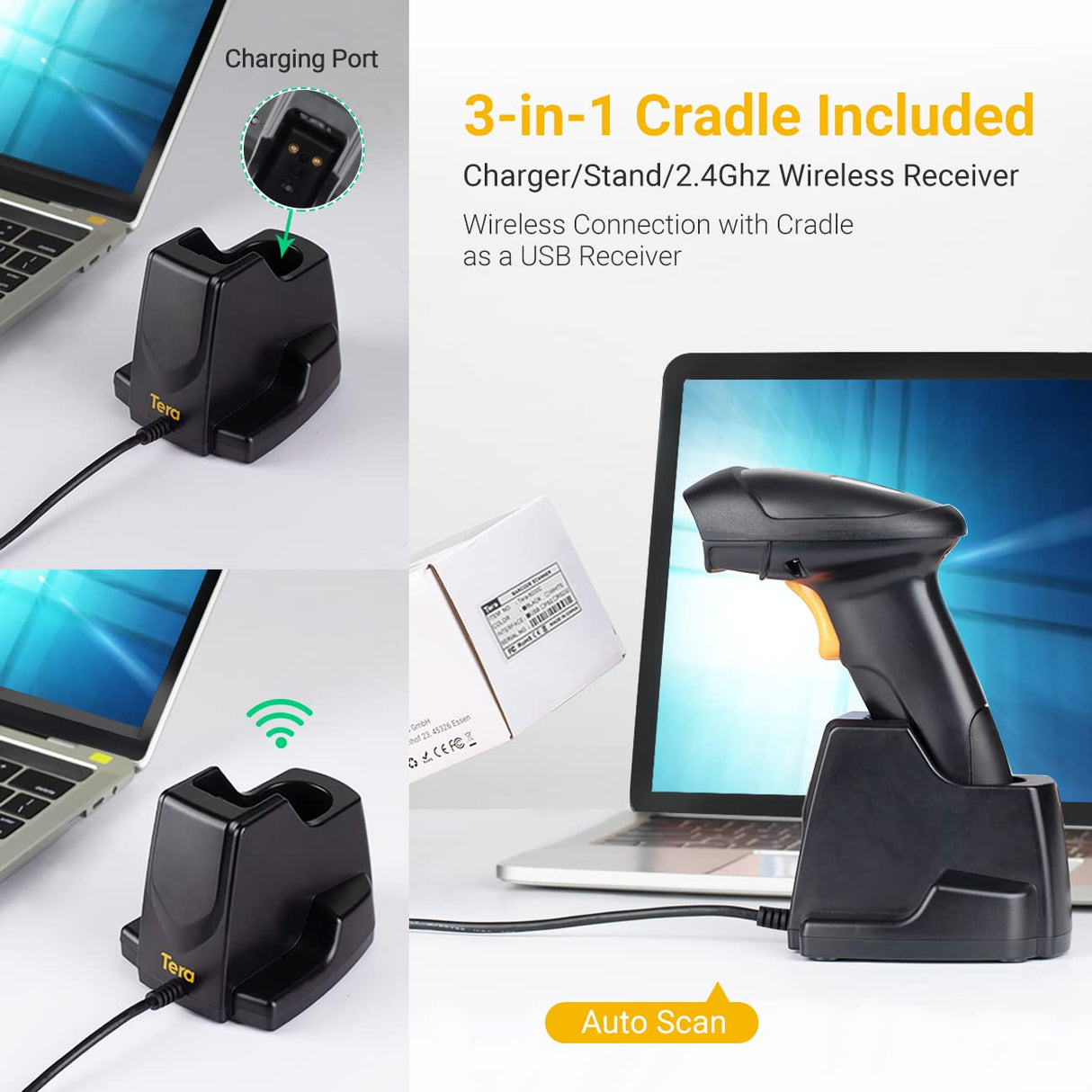

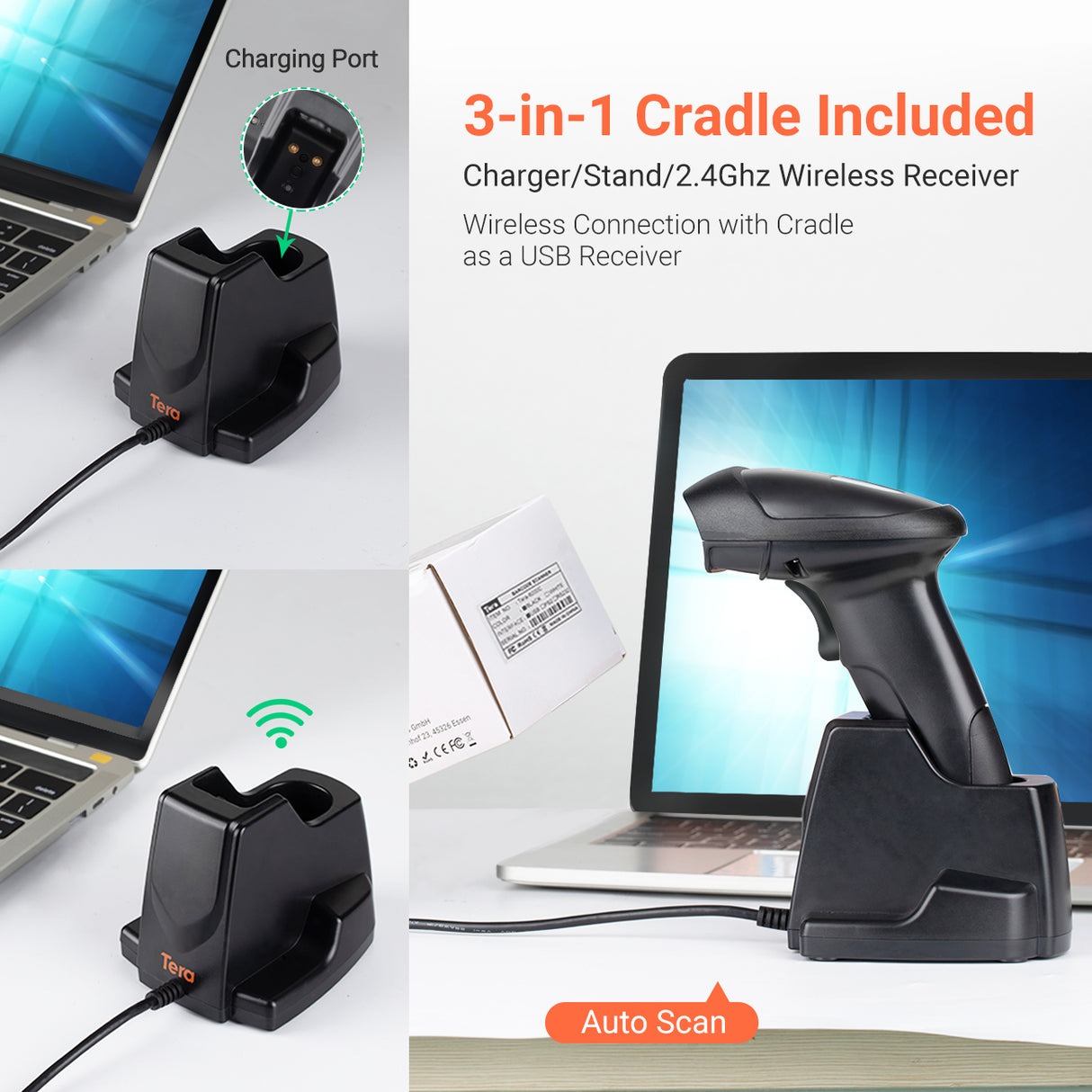

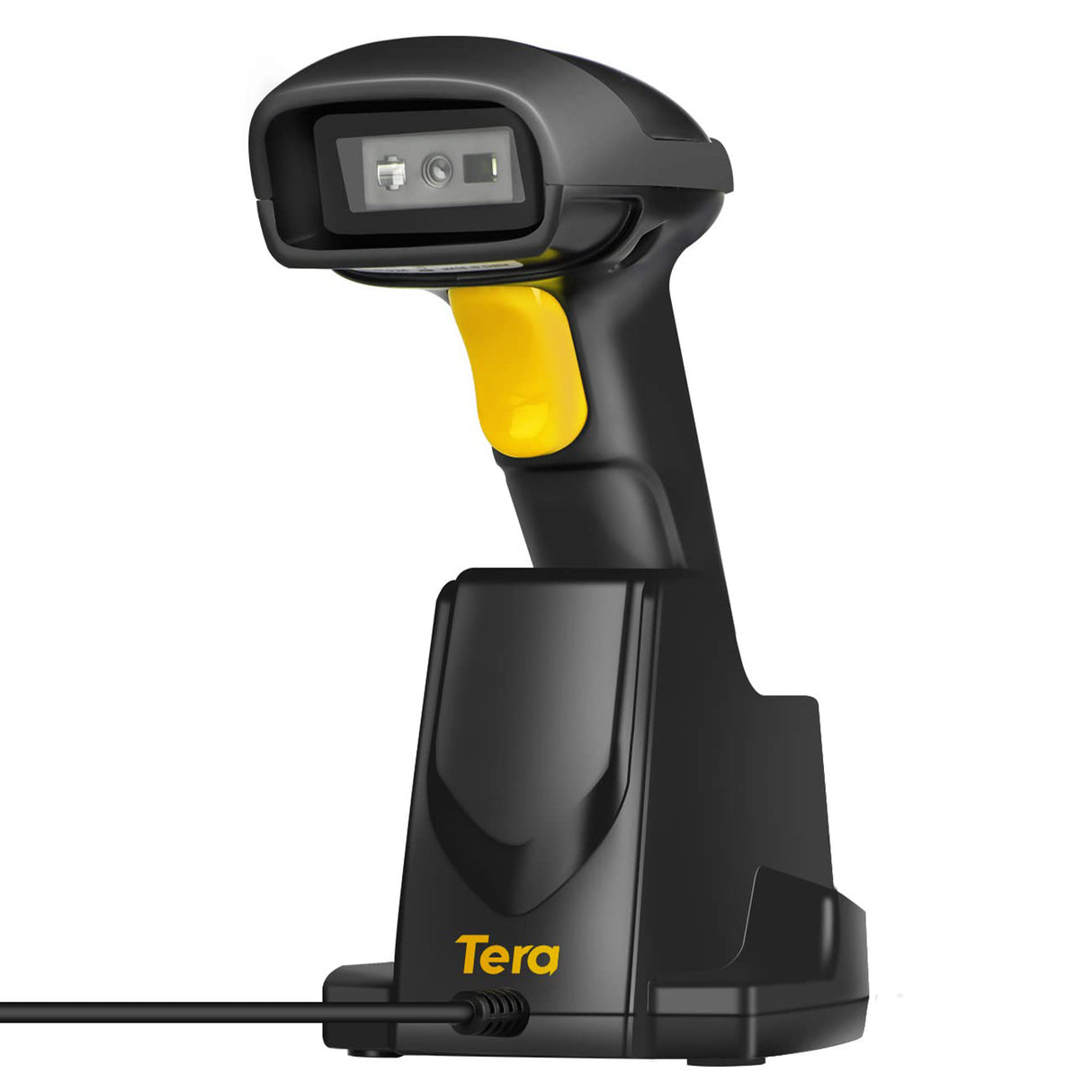

- Charger/Stand/Receiver 3-in-1 Cradle: 1. Cradle houses 2.4 GHz wireless receiver(the receiver is installed in the cradle, undetachable). Once connected to computer via USB cable, unit is ready for work. 2. Work as you charge. Whenever scanner sits in cradle, charging automatically starts. Cradle doubles as scanner stand for hands-free operation.
- Always powered: Internal large battery for extended standby time. While seated in cradle, scanner can operate continuously.

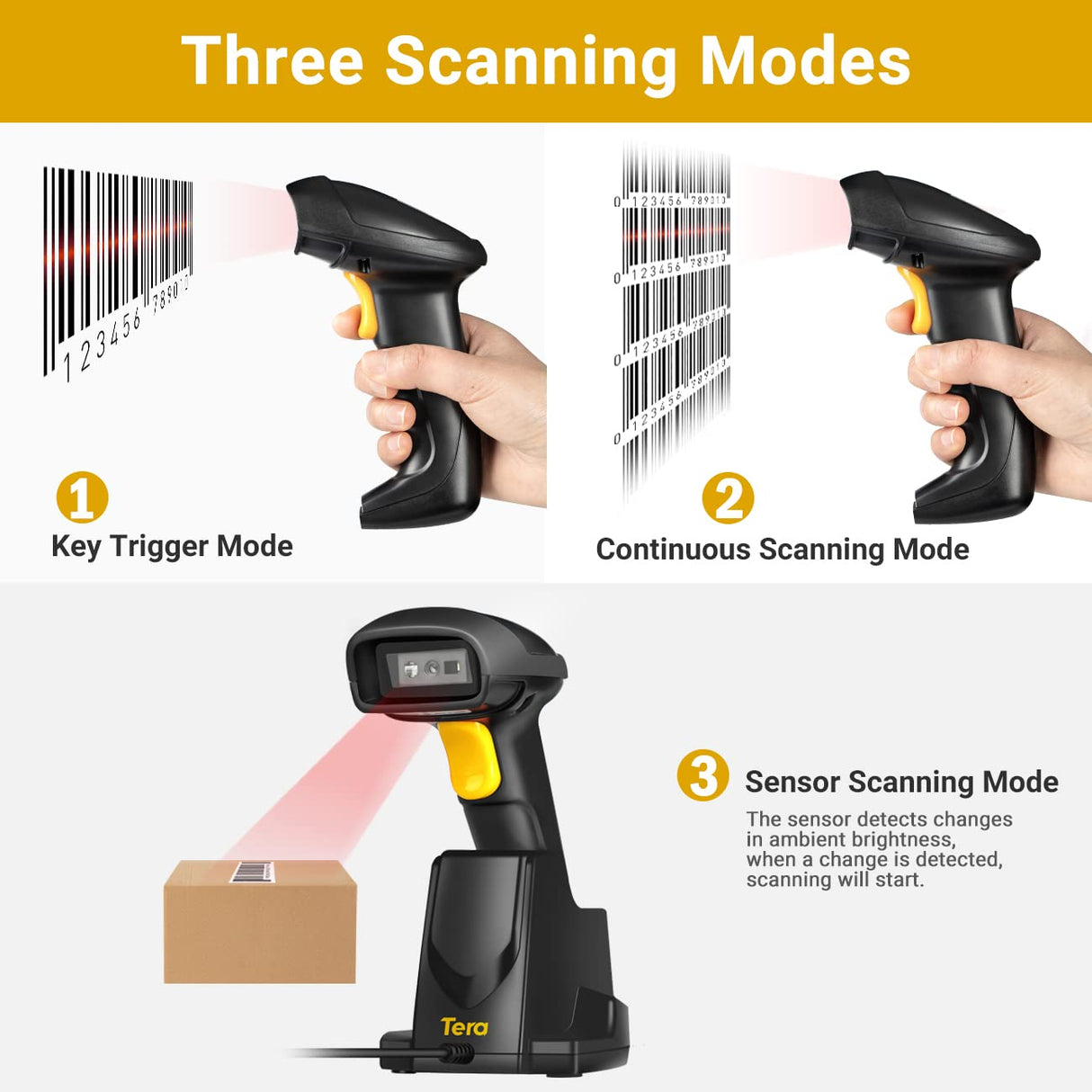

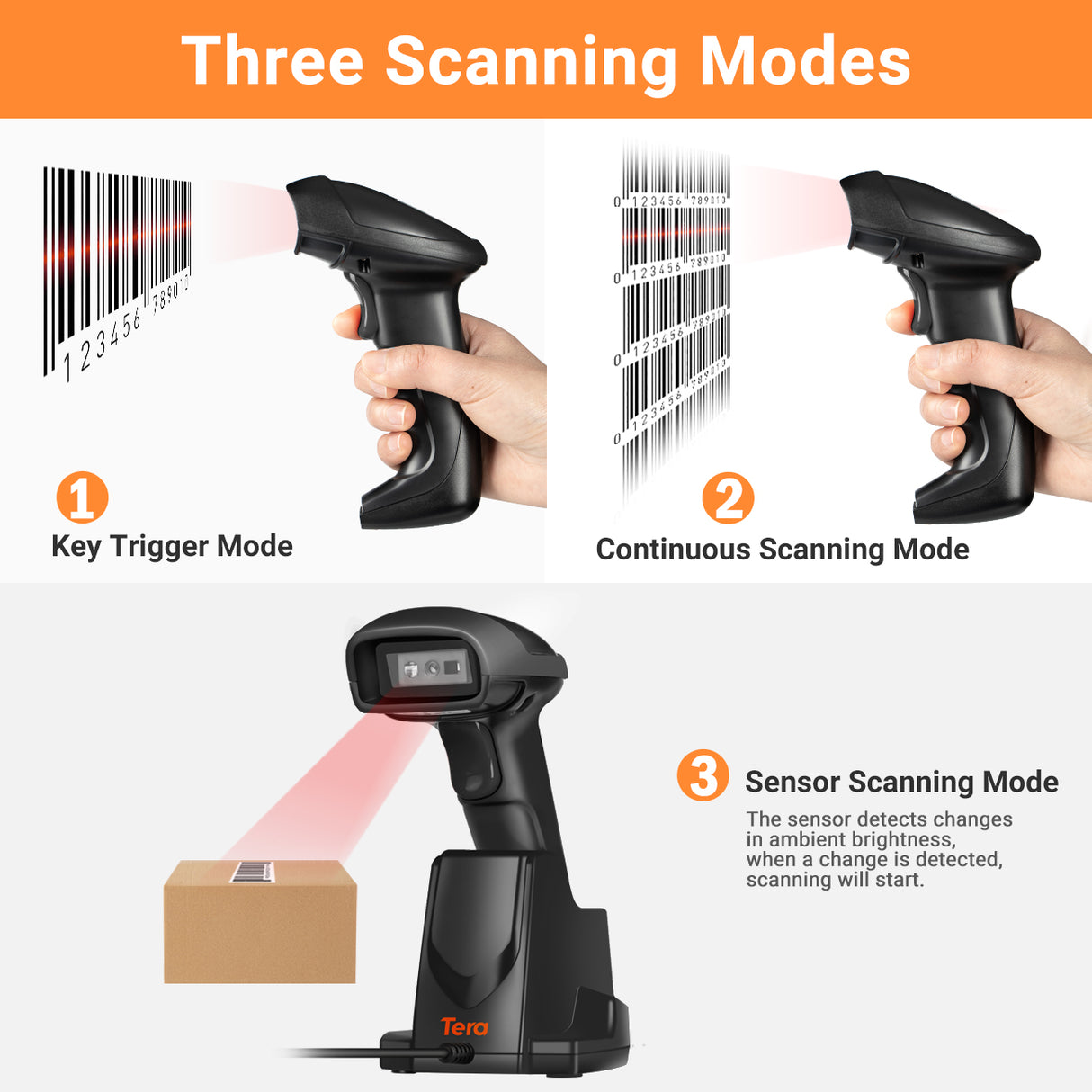

- Button/ Continuous Mode: Pull trigger button to scan in Button Mode. Set scanner in Continuous Mode and operate hands-free with scanner seated in cradle.

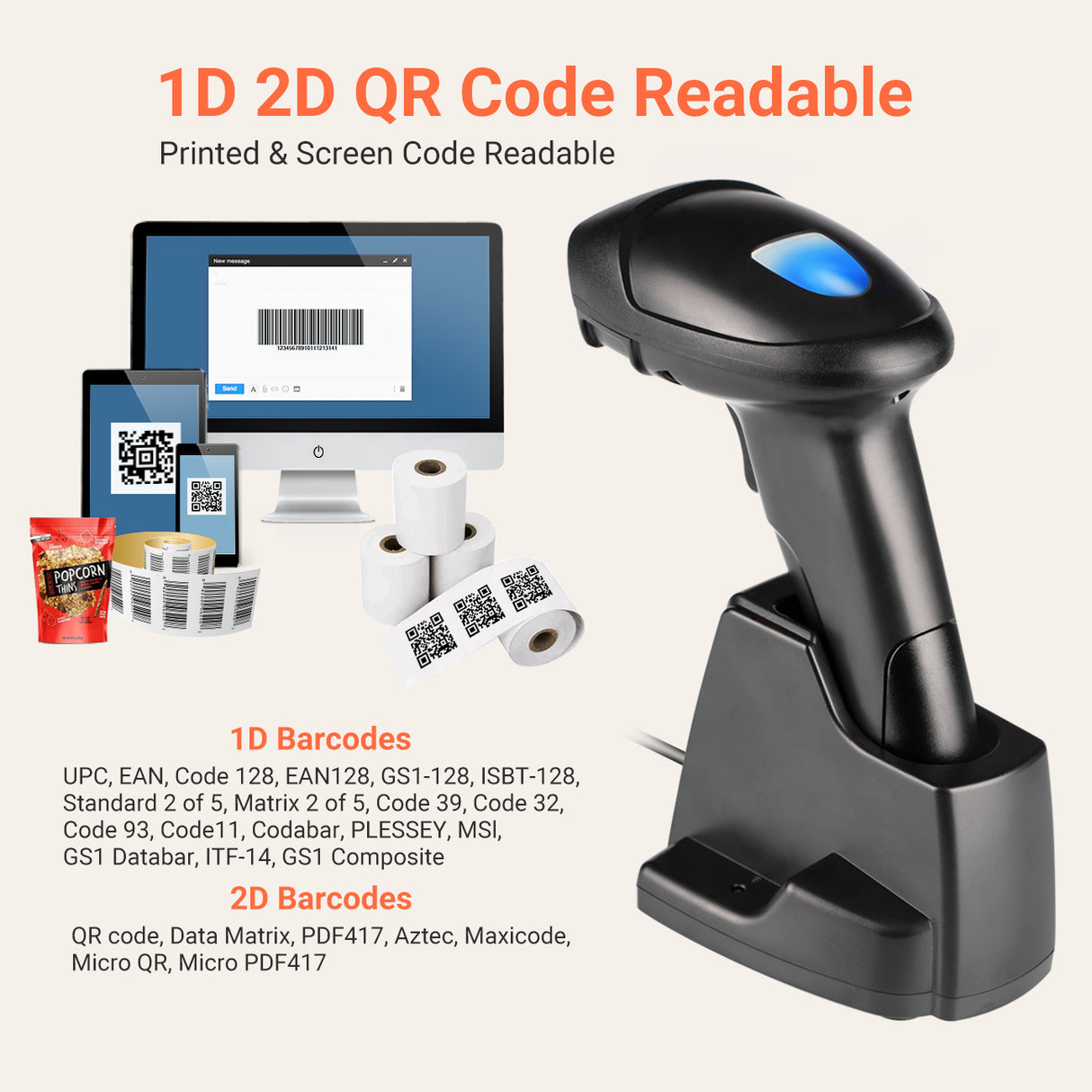

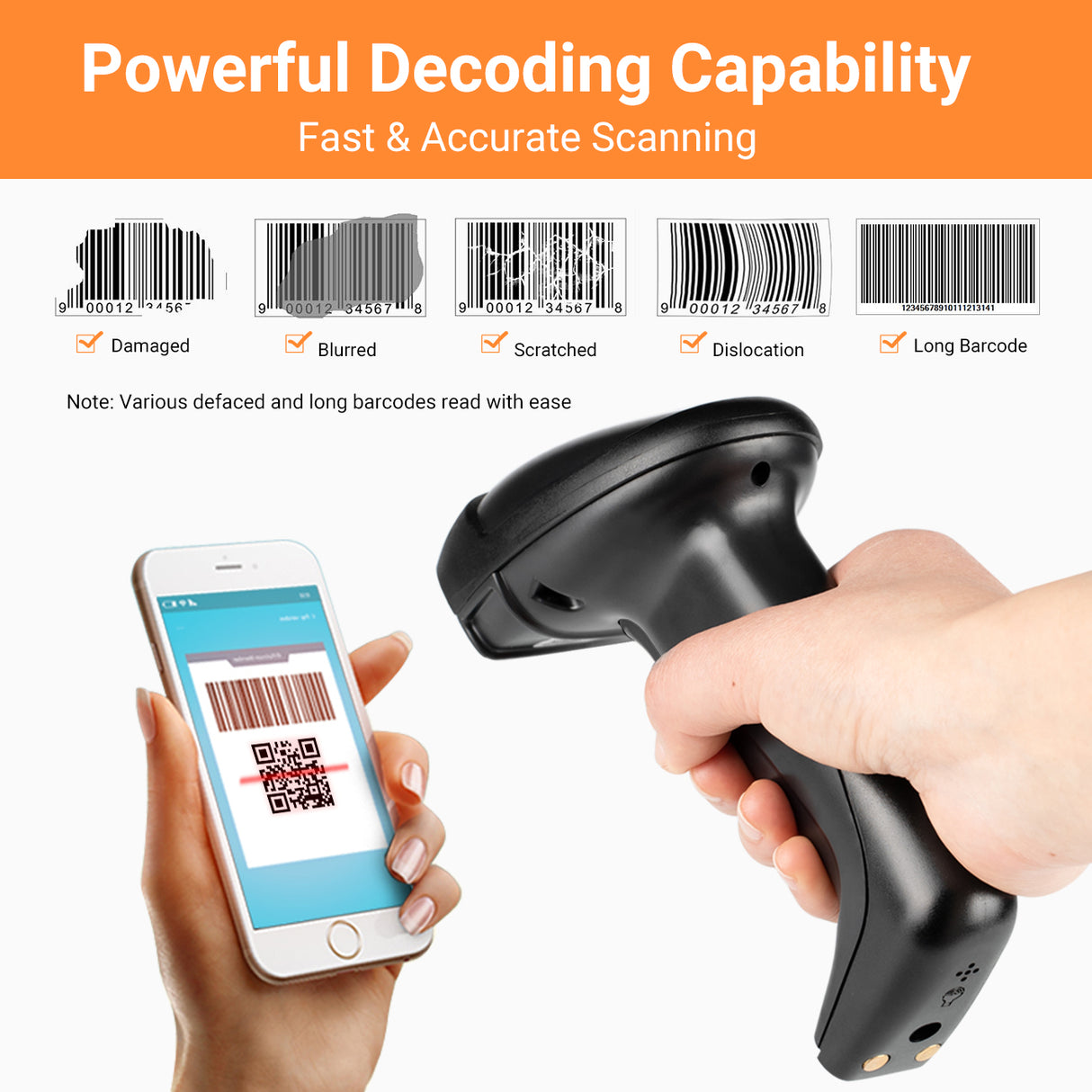

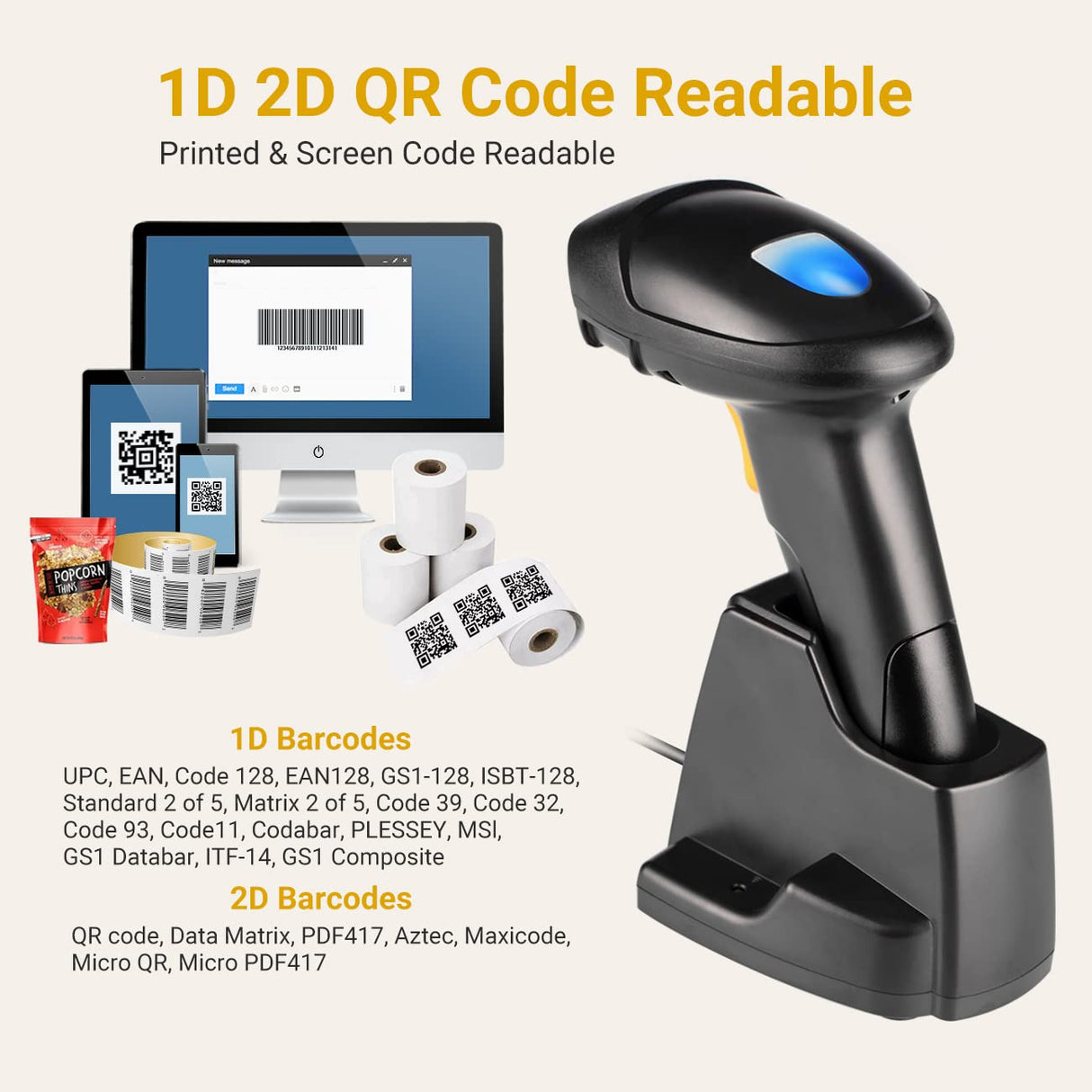

- Fast Accurate Reading Speed: 32 bit CPU, superior decoding capability. Can recognize following codes: UPC-A UPC-E EAN-8 EAN-13 with complementary Code128 Code39 Code 39Full ASCII Codabar Industrial/Interleaved 2 of 5 Code93 MSI Code11 ISBN ISSN China Post etc. (optional)GS1 Databar Code32; 2D: QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc.

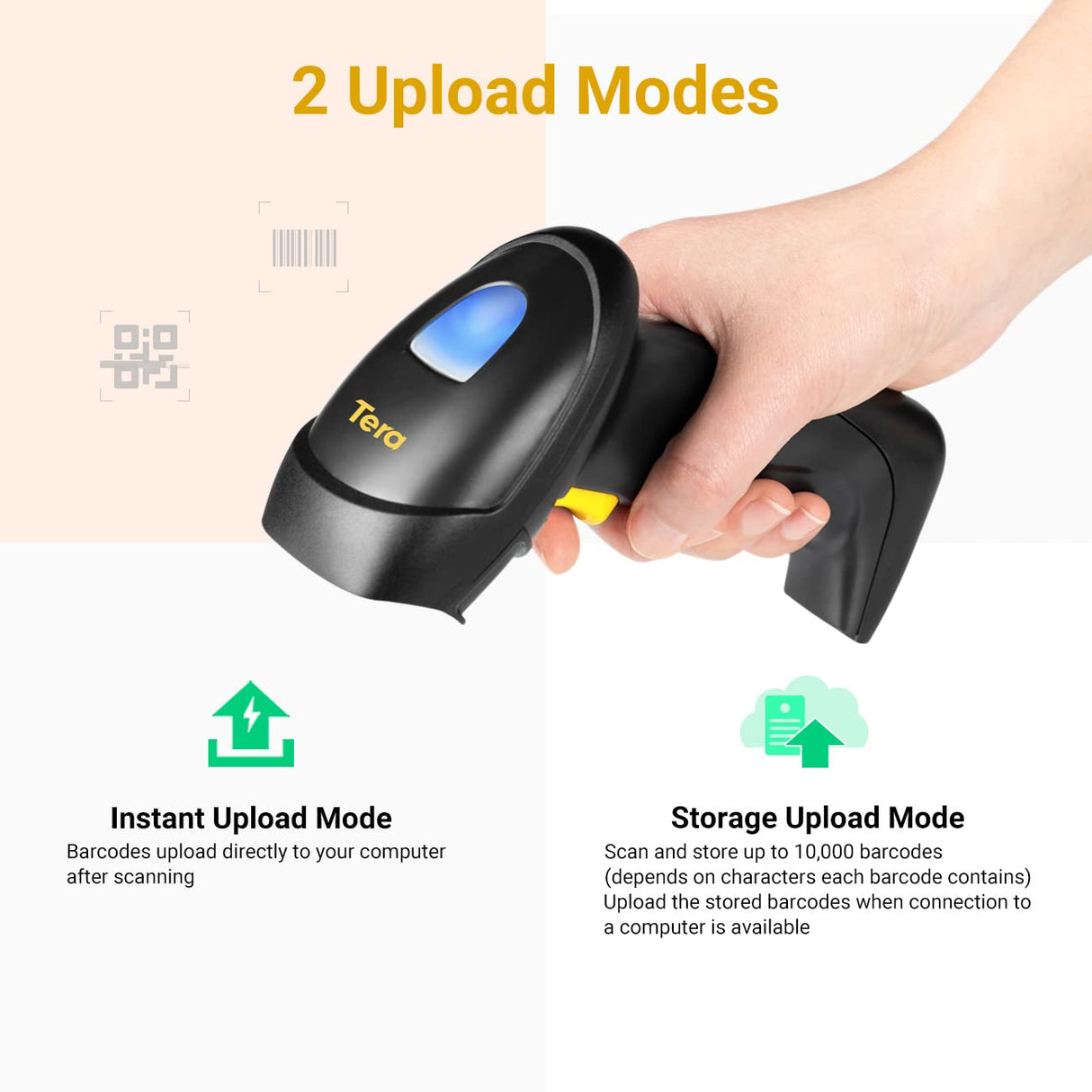

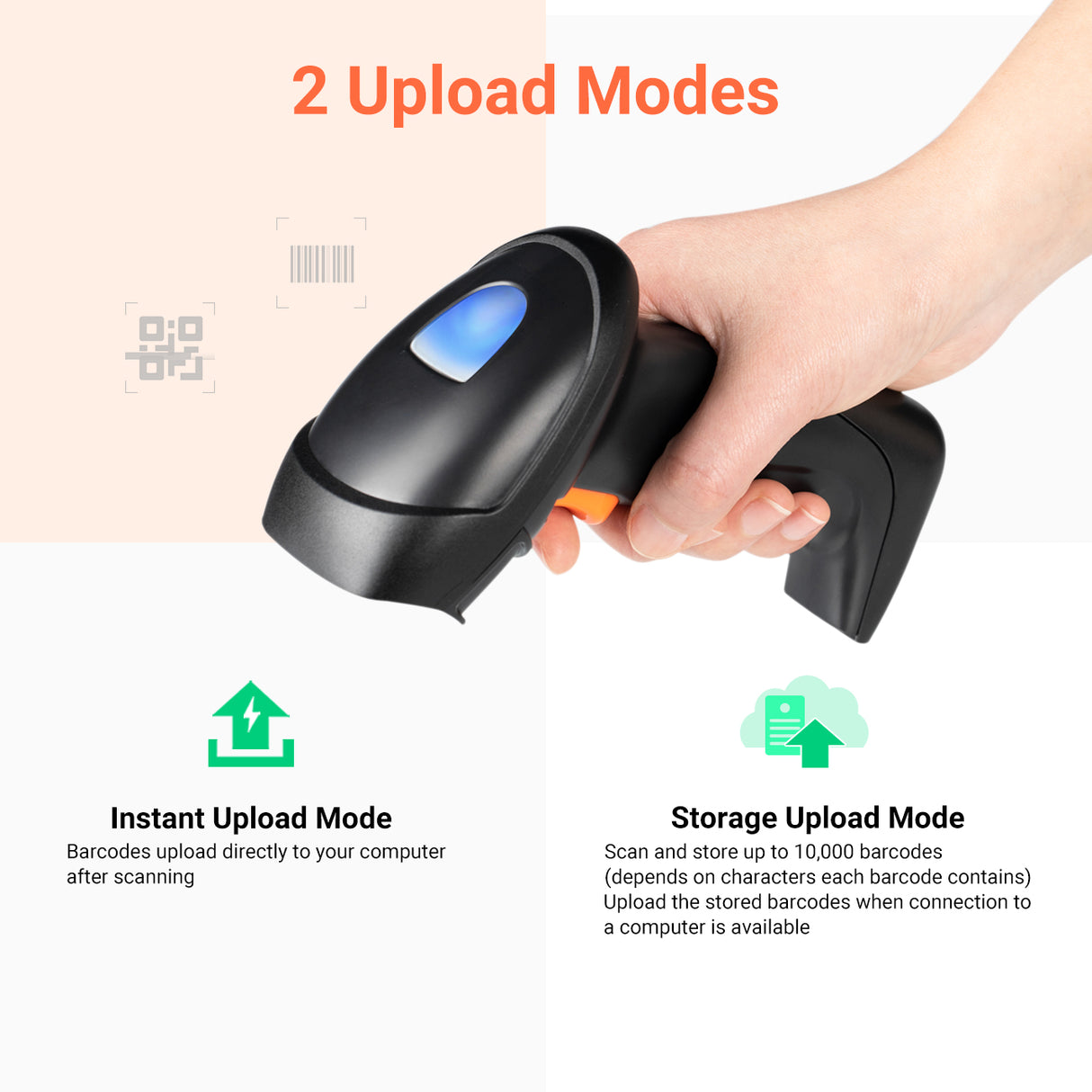

2 Upload modes
- Instant Upload Mode & Storage Mode:when using the scanner far away the wireless signal range, activate storage mode, all scanned barcode will be stored directly into the bulit-in memory of the scanner.
Plug & Play
- Cradle houses 2.4 GHz wireless receiver. Once connected to computer via USB cable, unit is ready for work.
- Work as you charge. Whenever scanner sits in cradle, charging automatically starts.
- Cradle doubles as scanner stand for hands-free operation.
Support Multi-language
- Support Multi-language such as English, Spanish, German, French, Italian, Japanese. Just write to us for a PDF manual.
- Support for scanning multi-language barcodes.
- *Note: Your keyboard language must match the selected language.
Specification
Performance parameter
| Type of light source | LED:wavelength 625nm |
| Notification | LED indicator, buzzer |
| Interface | USB |
Physical parameter
| Dimension | 160mm×65mm×85mm(scanner) |
| Notification | 150g |
| Receiver | 82.5mm×99.5mm×84mm |
| Weight |
135g |
Environmental parameter
| Operating temperature: | -20℃ to 50℃ |
| Storage/Transportation | -40℃ to 60℃ |
| Humidity | 5% to 95% (non-condensing) |
| Shock resistance | Can withstand a drop from a height of 1.5 meters |
| Dustproof | Sealing up to IP52 |
| Illumination | 100,000LUX |
Scanning performance
| Scan type | Image scanning |
| Sensor resolution | 640*480 CMOS |
| Scan angle | Horizontal: 50°; Vertical: 20° |
| Scanning accuracy | 1D 4MIL, 2D 4MIL |
| Printing contrast | Minimum 20% reflection difference |
| Scanning angle-Roll/Pitch/Skew | 360°,55°,55° |
| Decoding capability | 1D barcode, MSI Plessey, GS1 Databar, PDF417 and QR Code, DataMatrix etc. |
Electrical parameter
| Battery Capacity | 1000mAH lithium battery |
| Stanby time | 5 months |
| working time | 160mA & around 6 hours |
| Transmission capability | 2.4G |
| Transmission distance | 100meters (open distance) |
| Relevant certification | CE, FCC |
