D5100-CR 2D Wireless Barcode Scanner with Wall Mountable Cradle
D5100-CR 2D Wireless Barcode Scanner with Wall Mountable Cradle
Couldn't load pickup availability

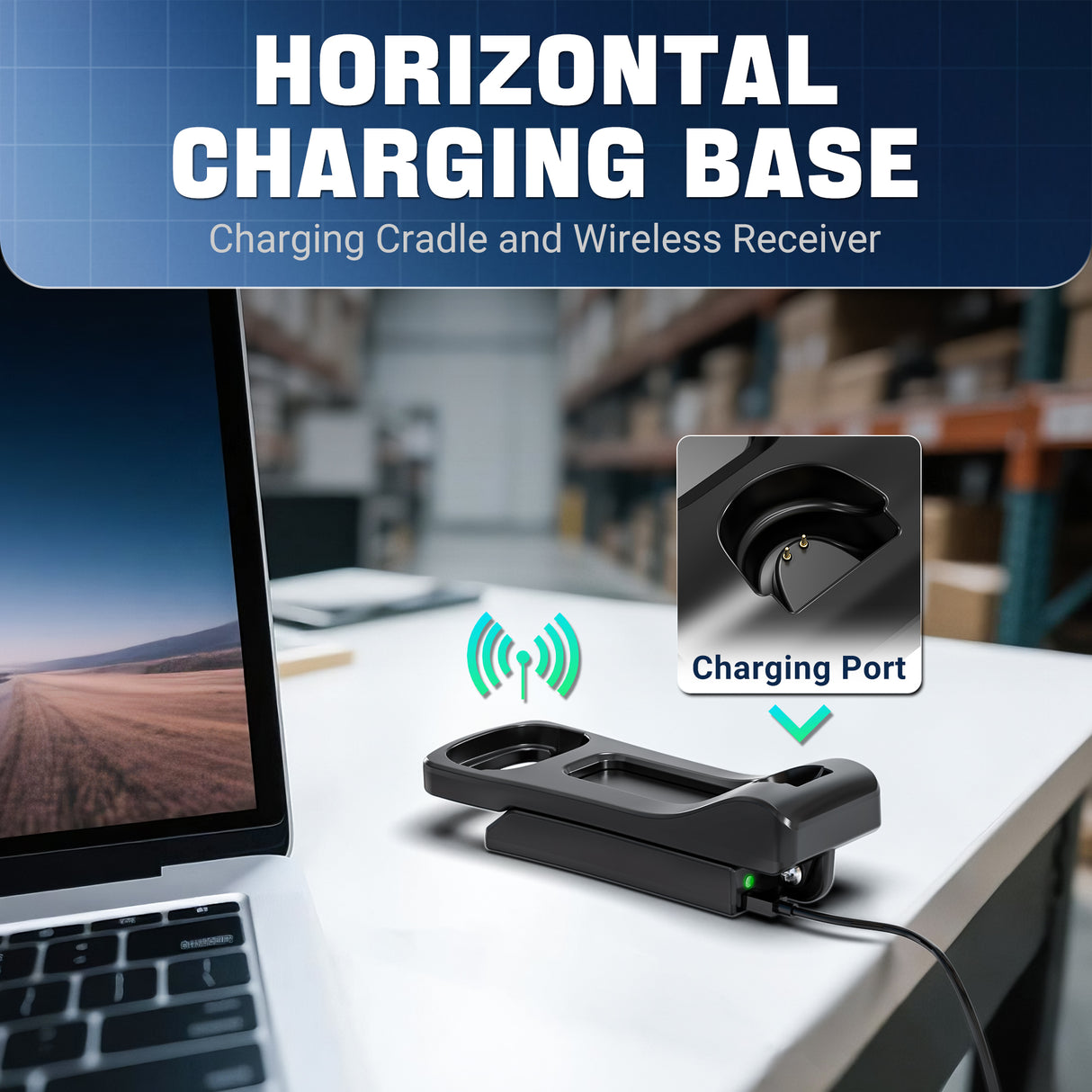

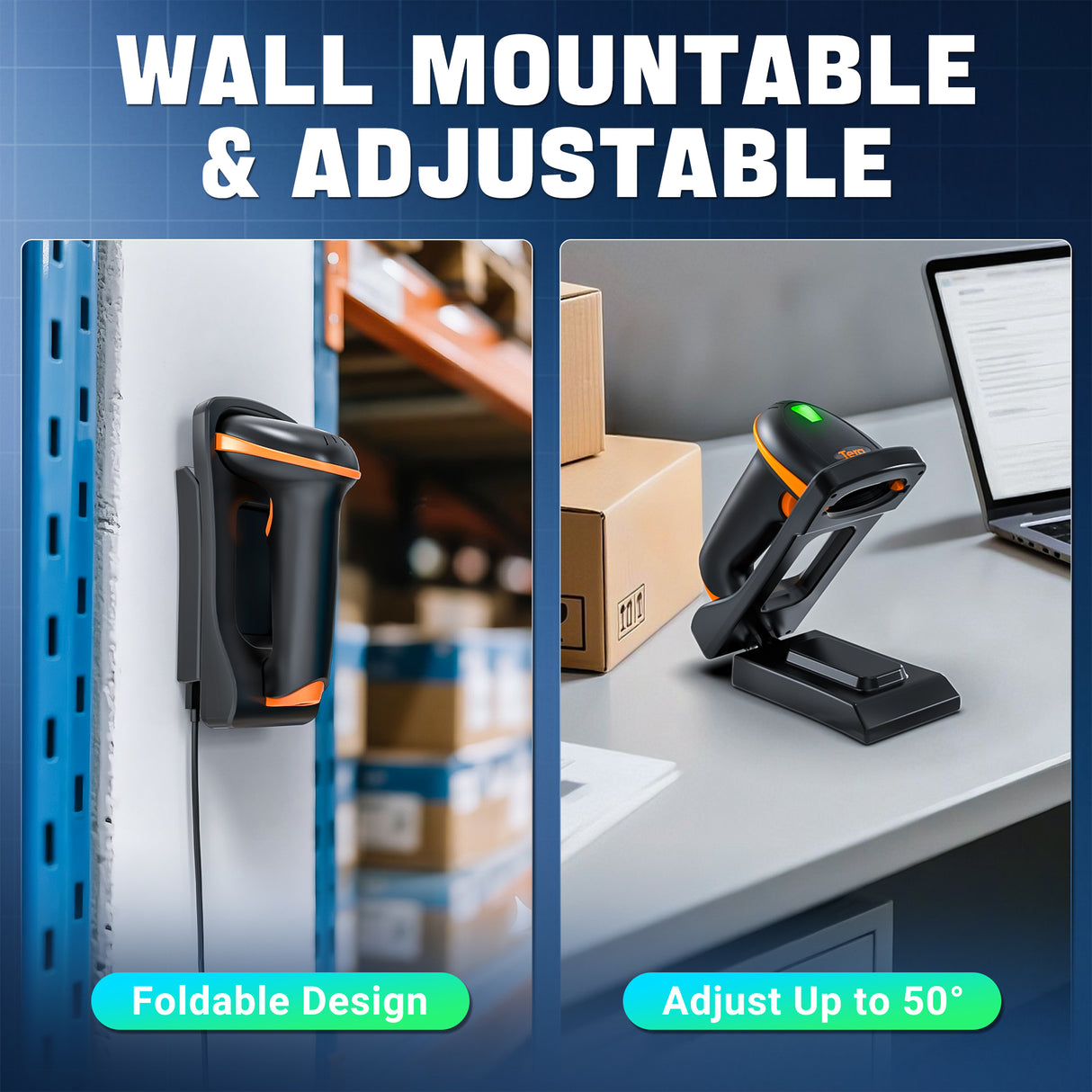

- 【Wall mountable】 Reserved hole at the bottom of stand, used in the warehouse without desks. Barcode Scanner stand could adjust to different angles while also used as a wireless receiver.
- 【2.4G Wireless+USB 2.0 Wired Connection】 Plug and play with simple plug in USB cable or USB receiver/dongle(Wireless transmission distance reaches up to 328ft under barrier free environment).
- 【Supported Both Digital and Printed 1D 2D QR Bar Code Symbologies】1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5, Coda bar, MSI Plessey, RSS, etc. 2D: QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc.
Tera New Design 2D QR Wireless USB Wired Barcode Scanner with Foldable Charging Cradle
Tera is an international pioneer brand designed in Germany that specializes in barcode scanners with research centers in Berlin and Munich. Tera Pro Series has assembled the essence of design, R&D and production of Tera barcode scanners during the past 6 years. It is a brand-new professional generation of upgraded products by Tera.
Capable of Reading 1D 2D QR Barcodes
- 1D 2D QR barcode from computer screen or smart phone screen
- 1D 2D QR printed Barcode on paper or package
-
Normal and inverted(white barcode on black background) Barcodes
Supports Adding or Hiding Digits
- This barcode scanner allows to add/hide characters before or in the middle of or after the barcode.
- Prefix and/or suffix of max. 20 digits can be added to the scanned barcode.
Supports 25 Languages
- Supports multiple languages including English, Spanish, German, French, Italian, Japanese, etc.
- To get the correct output, make the scanner's keyboard language consistent with your computer's keyboard language.
- The scanner's factory default language is English.
Two Scanning Modes
- Key Trigger Mode
- Continuous Mode
Specification
Scanner parameter
|
Transmission mode: 2.4G wireless |
Storage:100,000 barcodes |
|
|
Distance：100m |
CPU：ARM 32-bit Cortex |
|
|
Sensor：640*480 CMOS |
Interface：USB，USB-COM |
|
|
Resolution ：4mil |
Light aimer： 617nm LED |
|
|
Battery: 3.7V-2600mAh |
Indication：Buzzer & LED |
|
|
Decoding speed：500scans/sec |
Illumination： 6500K LEDs |
|
|
Button life ：8000,000 times |
Printing contract ：≥25% |
|
|
250Lux Depth of Field |
13mil-EAN13 |
50-250mm |
|
4mil-code39 |
60-100mm |
|
|
20mil-QR |
40-300mm |
|
|
10mil-PDF417 |
40-280mm |
|
|
Decode Capability： 1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， Code 39，Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Standard 2 of 5， Coda bar，MSI Plessey，RSS，etc. 2D: QR Code, Data Matrix，PDF417，Aztec code，Maxicode，etc. |
||
|
Trigger Mode：Handheld,Continuous,Auto-Induction |
||
|
Scanning angle：Angle of rotation360°，inclination± 65°，declination ± 60° |
||
|
Working current：3.3Vx200mA |
Standby current ：18uA-5mA |
|
|
Working time ：3 to 10 days |
Charging power：5V-400mA |
|
|
Anti inference：0-100000Lux Max |
Relative Humidity: 0 ~ 95% |
|
|
Certificate ：CE，FCC，RoHS，IP54 |
Drop test ：2m |
|
