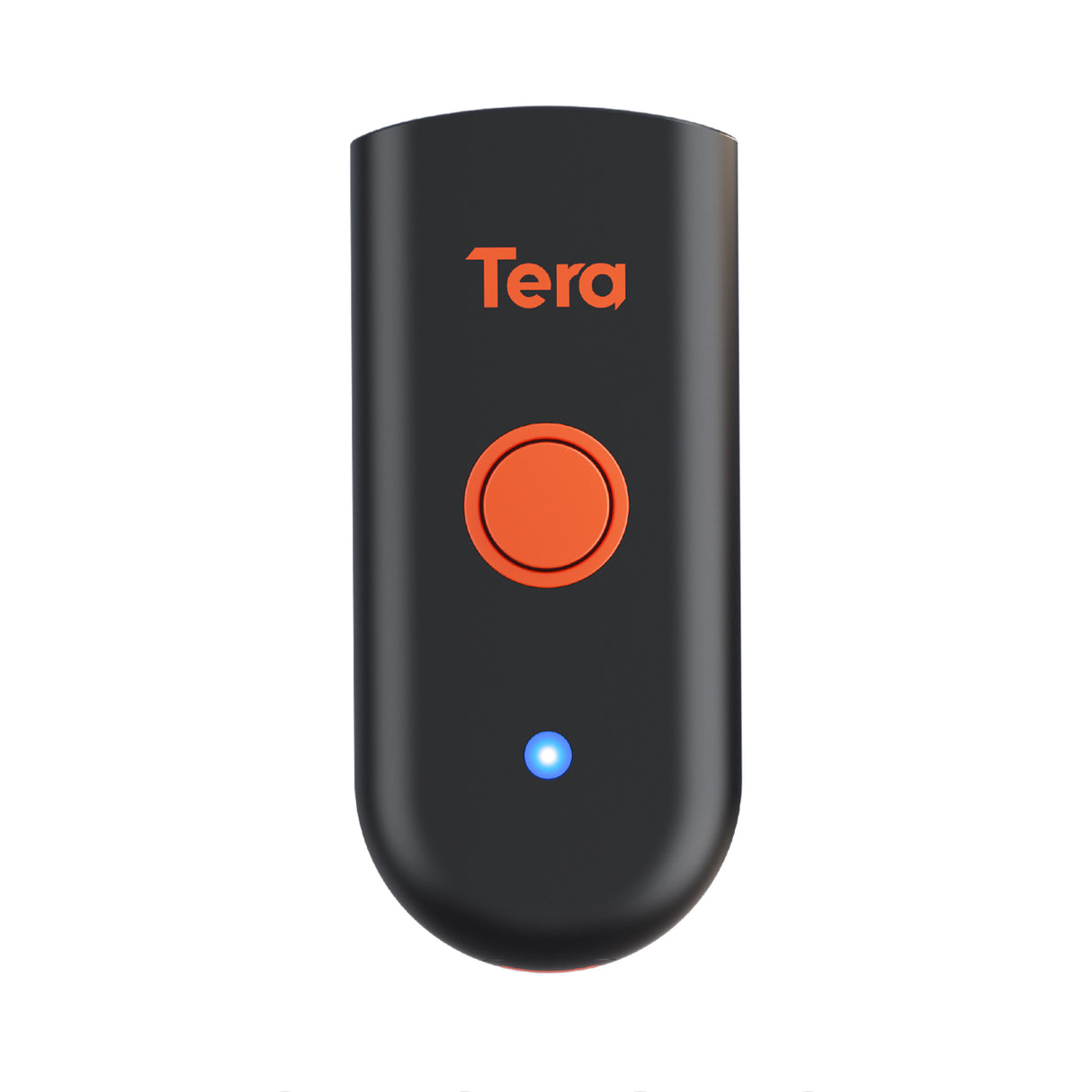

1100D 2D Portable Barcode Scanner

1100D 2D Portable Barcode Scanner

Regular price $ 44.89 USD
Regular price Sale price $ 44.89 USD
Sale Sold out

Tera Upgraded Version Mini Portable 1D CCD Bluetooth Barcode Scanner

NOTE: Read 1D screen digital and paper printed barcodes, NOT read any type of 2D QR barcode.

If you need a PDF version of the manual, please go to Tera official website to download it yourself.

What are CCD Barcode Scanners (Linear Imagers) ?

CCD (Charged Coupling Device) barcode scanners use an imaging engine to take a picture of the barcode and then decode the characters. CCD barcode scanners are "linear imagers" meaning that you will still see a red focus line when triggering the scan.

Advantages of CCD Scanners :



  • Durable: CCD scanners have no internal moving parts so they are typically a bit more durable than a laser scanner.
  • More Economical: CCD scanners, on average, are usually less costly than other barcode scanners.
  • Scan In Direct Sunlight & On Device Screens: Essentially, a CCD scanner is "taking a picture" of the barcode. Due to this scanning process, CCD scanners are able to operate in bright sunlight. Most CCD scanners are also able to read scans off a computer or other devices screens.
  • Eye Safe: Laser could be a little bit harmful for eyes, if it directly pointed to eyes.

IP66 waterproof, dustproof and drop-proof rating

IP66

Completely protected against dust ingress and protected against heavy waves (certification tests require at least 3 minutes of heavy water spray without water ingress to achieve this rating)

Please do not charge the scanner gun with a cell phone charger.

Model 1100-CCD(EVHK0050) is the latest version of Tera 3 in 1 (Bluetooth + 2.4G Wireless + USB cable) 1D mini barcode scanners

Tera 3-in-1 Bluetooth CCD 1D Mini Portable Barcode Scanner

This waterproof barcode scanner is suitable for digital screens and paper 1D barcodes.

barcode scanner mini

mini barcode scanner

0

Specification

Scanning Specs

 Resolution ≥4mil/0.1mm(PCS90%,CODE 39)
Depth of Scanning Field 50mm~430mm (depends on diffrent type of barcode)
Scanning Angle - Roll ±360°
Scanning Angle - Pitch ±50°
Scanning Angle - Skew ±50°
Decoding Capability 1D & 2D Barcodes
Supported Barcode Types 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5, Standard 2 of 5(IATA25) ,Codabar(NW-7),etc.
2D: QR Code, Micro QR Code, Data Matrix,PDF417,,etc.


Data Transmission

Transmission Capability Wired USB, Wireless 2.4G, Bluetooth
Wireless Transmission Distance 2.4GHz,60meters
Bluetooth Transmission Distance Bluetooth 30meter(Open distance)
Notification LED indicator light, buzzer, vibration



Electrical

Working Voltage DC 5V
Working Current 160mA(Average Work)
Battery Capacity 1200mAh
Charging Requirement Maximum 5V 1A
Charging Time NA
Working Time NA



Environmental

Working Temperature 0℃ to 50℃
Storage/Transportation -30℃ to 60℃
Humidity 5% to 95% (non-condensing)



Functions

Beeper Volumn ON/OFF
Beeper Volumn UP/DOWN
Inverse Barcodes
Character Case Conversion
Scanning Mode Manual Trigger Mode, Continuous Scanning Mode,
USB-COM / Virtual Port
Storage Mode

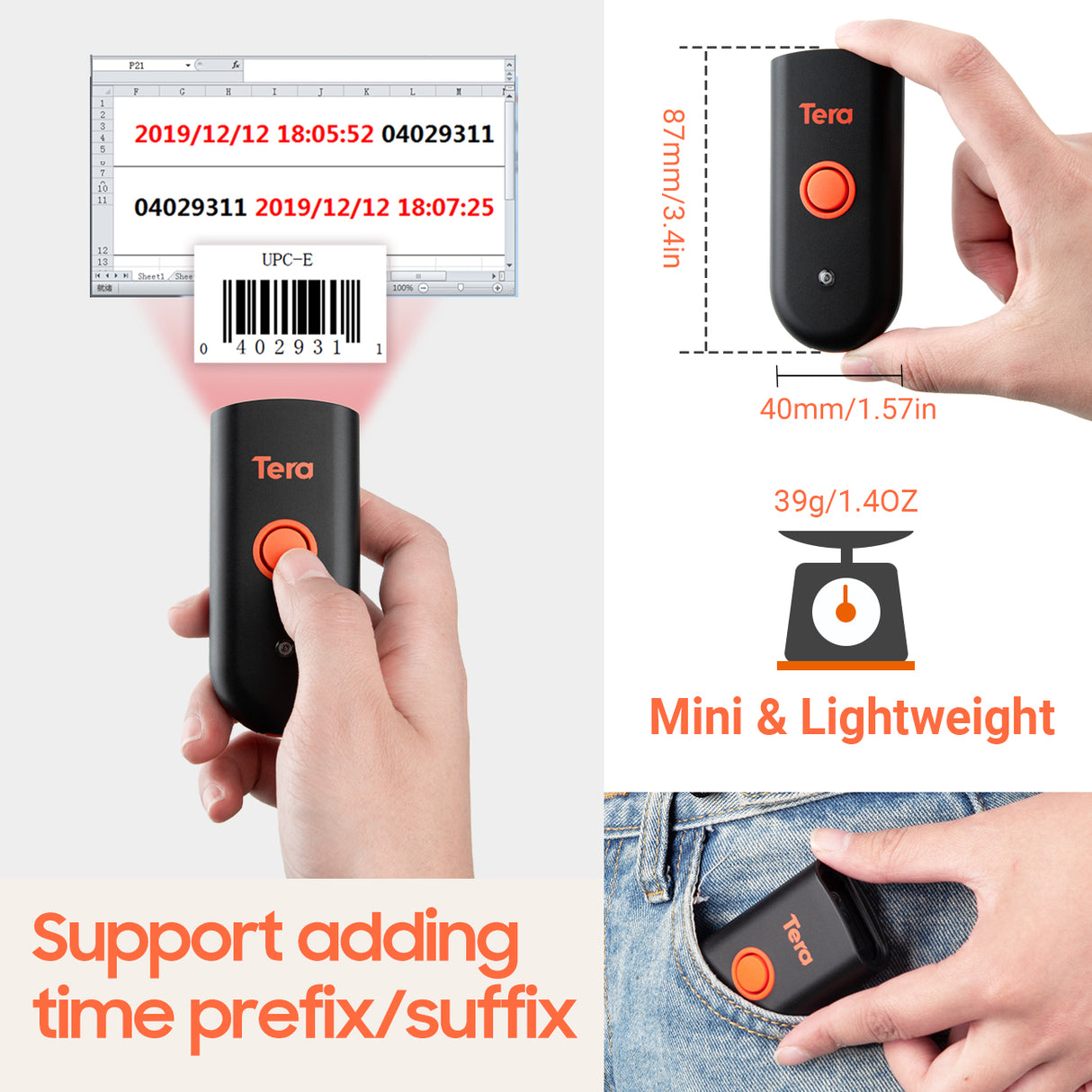

Add Prefix/Suffix
Hide Prefix/Suffix
GS Replacement
Time Stamp
Terminator
