HW0010 2D Ring Barcode Scanner
HW0010 2D Ring Barcode Scanner
Couldn't load pickup availability
Request Quote for Best Pricing

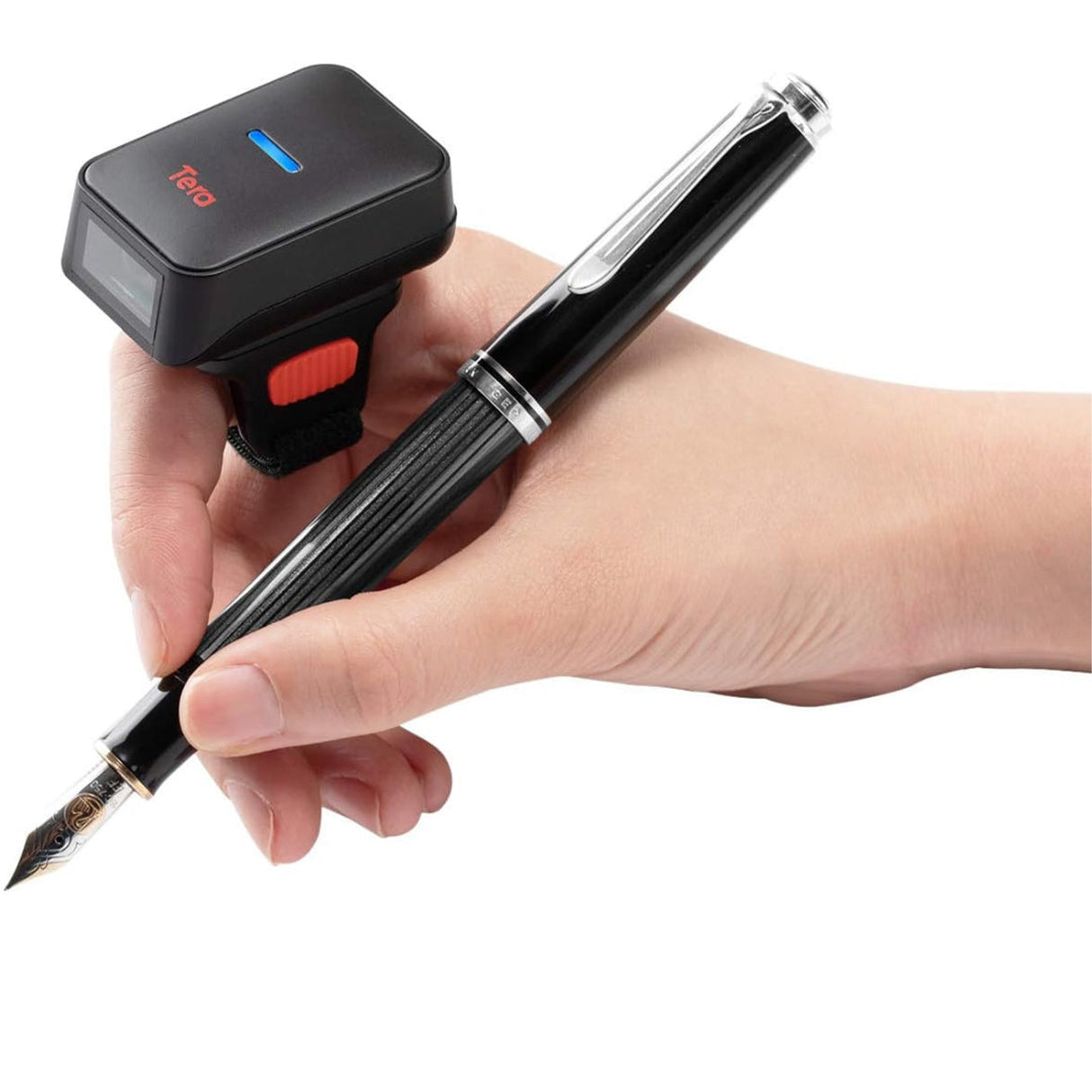

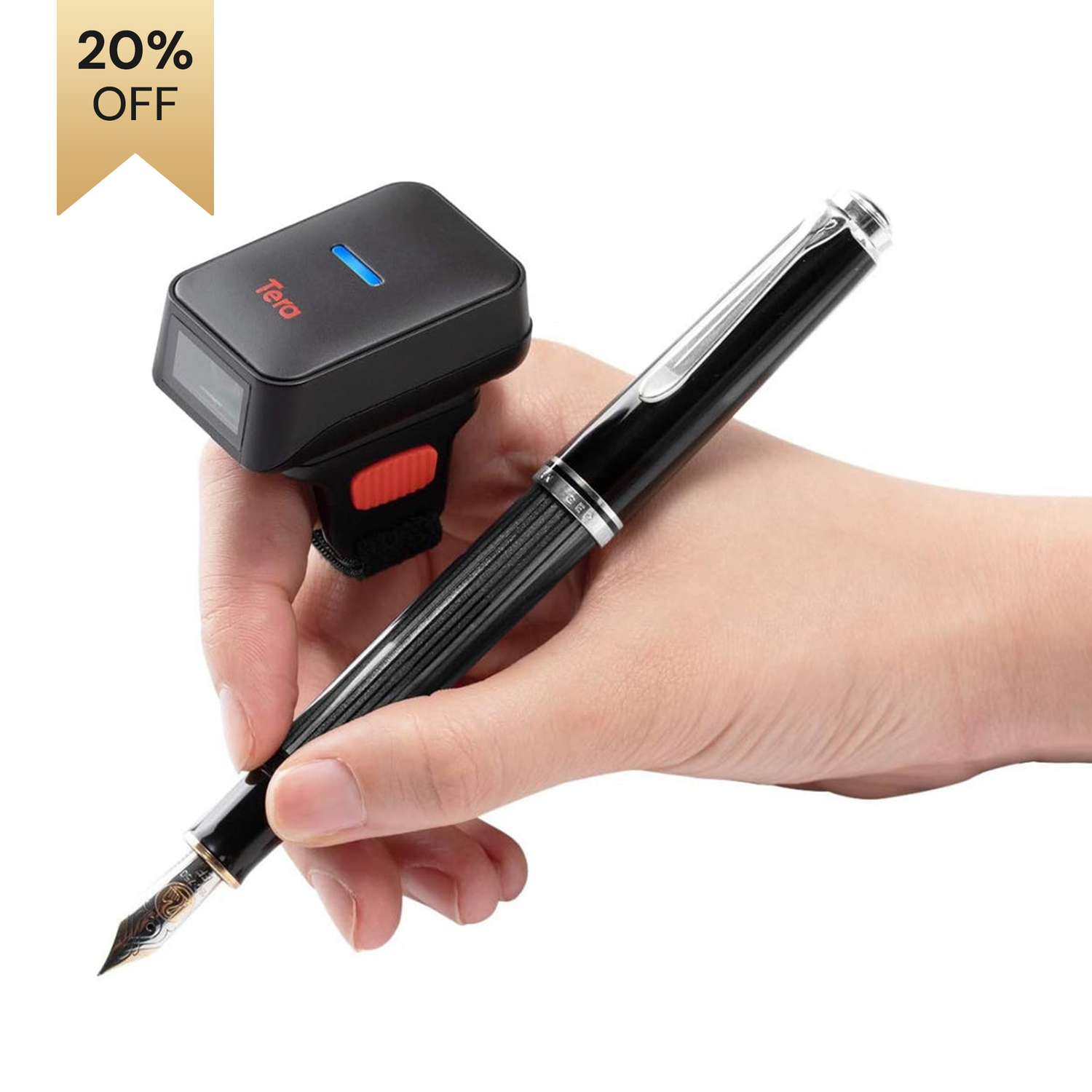

- 【Wearable Ring Barcode Scanner】Special ring design, mini portable barcode scanner can freely rotate on your finger. Durable trigger button, easy one click to scan fitting perfect on your finger and comfortable to use.

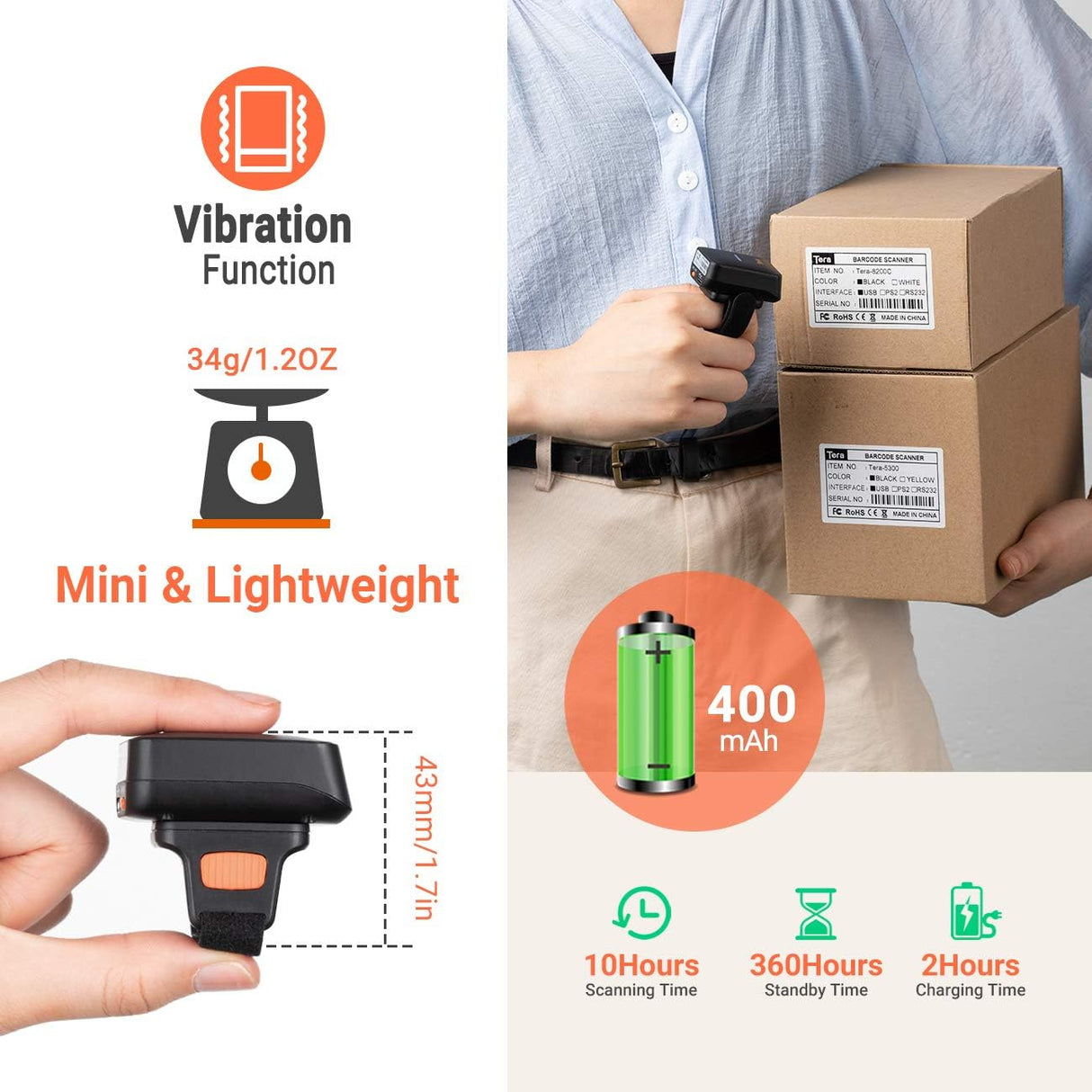

- 【Vibration Alert】 When you need a quiet working environment, just set the volume off and the vibration function will lets you know if a barcode is detected.

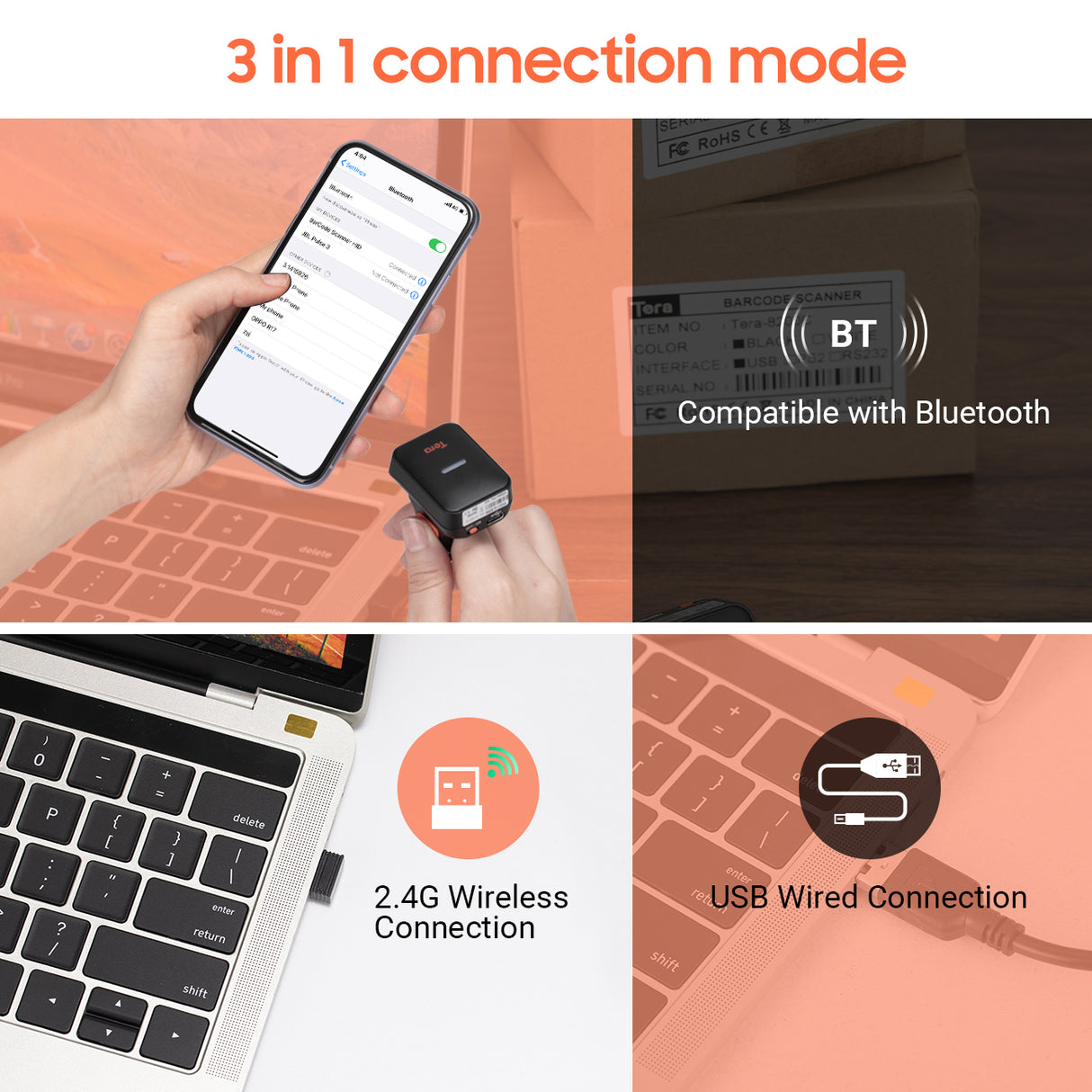

- 【Versatile 3-in-1 Transmission】Connection via Bluetooth, 2.4G wireless and USB wired.

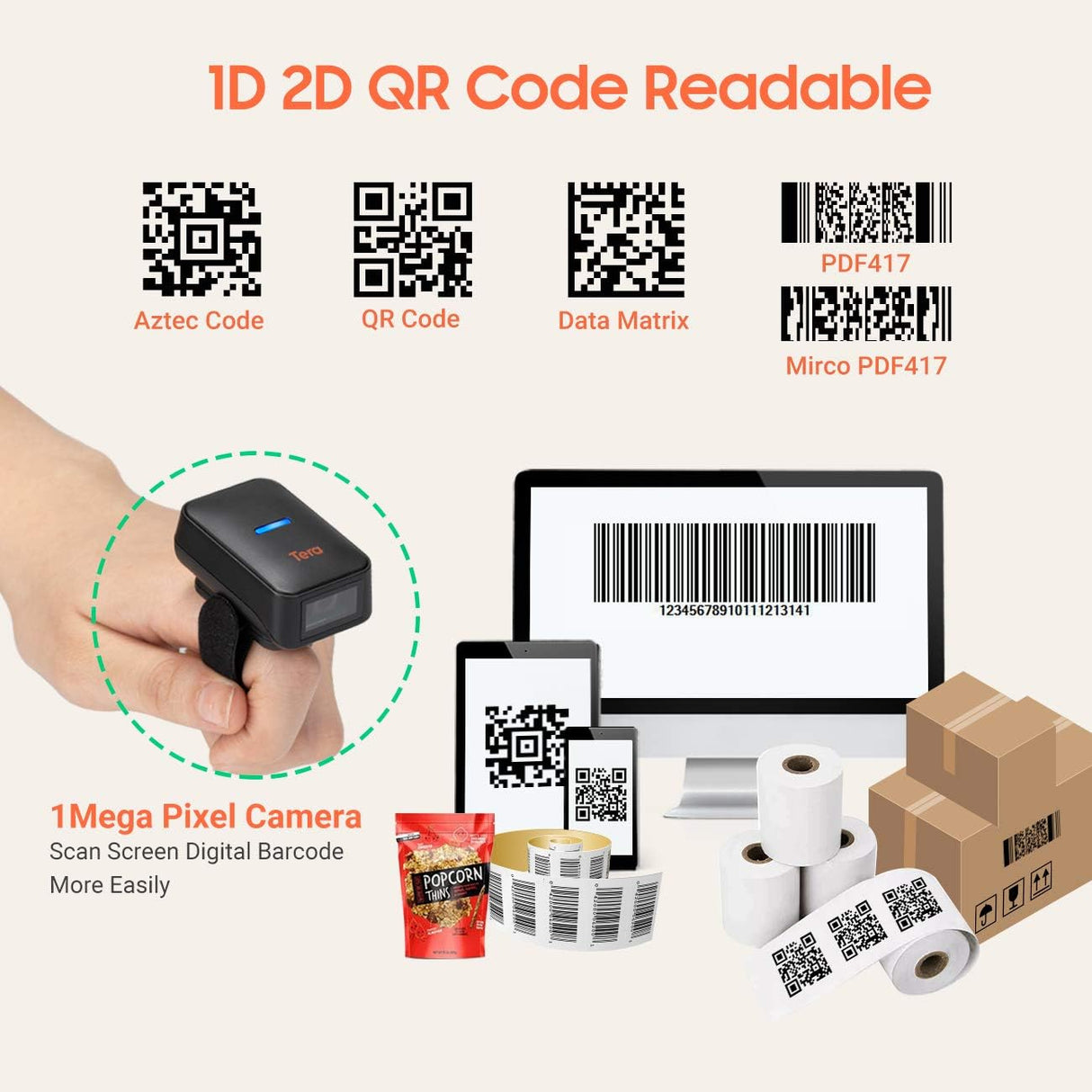

- 【Supported Digital and Printed 1D 2D QR Bar Code】1D Decode Capability: Codabar, Code 11, Code93, MSI, Code 128, UCC/EAN-128, Code 39, EAN-8, EAN-13, UPC-A, ISBN, Industrial 25, Interleaved 25, Standard 25, 2/5 Matrix, CODE 32, UPC-E, 2D Decode Capability: QR Code, PDF417, Data Matrix, Aztec code.
Scan head designed in Germany with European quality standards
System software originated from Germany
First-class main chip with competitive superior quality
Tera is an international pioneer brand designed in Germany that specializes in barcode scanners with research centers in Berlin and Munich. Tera Pro Series has assembled the essence of design, R&D and production of Tera barcode scanners during the past 6 years. It is a brand-new professional generation of upgraded products by Tera.
Note: Please DO NOT use quick charge adapters to charge the scanner, suggested charging current 5V1A.
This scanner does not support the USB Power Delivery (USB PD) charging standard of the USB-C interface. Please do not use the USB PD standard power adapter and data cable to charge this product. It is recommended to use the original USB cable included in the package for charging.
1. This wearable mini size scanner can freely rotate on your finger, which can make your work much easier.
2. Can be connected with Bluetooth enabled devices. Support Bluetooth HID, SPP, BLE protocol.
3. Support 2.4G wireless connection and USB wired connection.
4. Can read both 1D and 2D QR code on paper and screen.
Supports Multi-Languages
- Supports multiple languages including English, Spanish, German, French, Italian, Japanese, etc.
- To get the correct output, make the scanner's keyboard language consistent with your computer's keyboard language.
- The scanner's factory default language is English.
Support Add Support Adding or Hiding Digits
- This scanner allows to add/hide characters before or in the middle of or after the barcode.
- Prefix and/or suffix of max. 20 digits can be added to the scanned barcode.

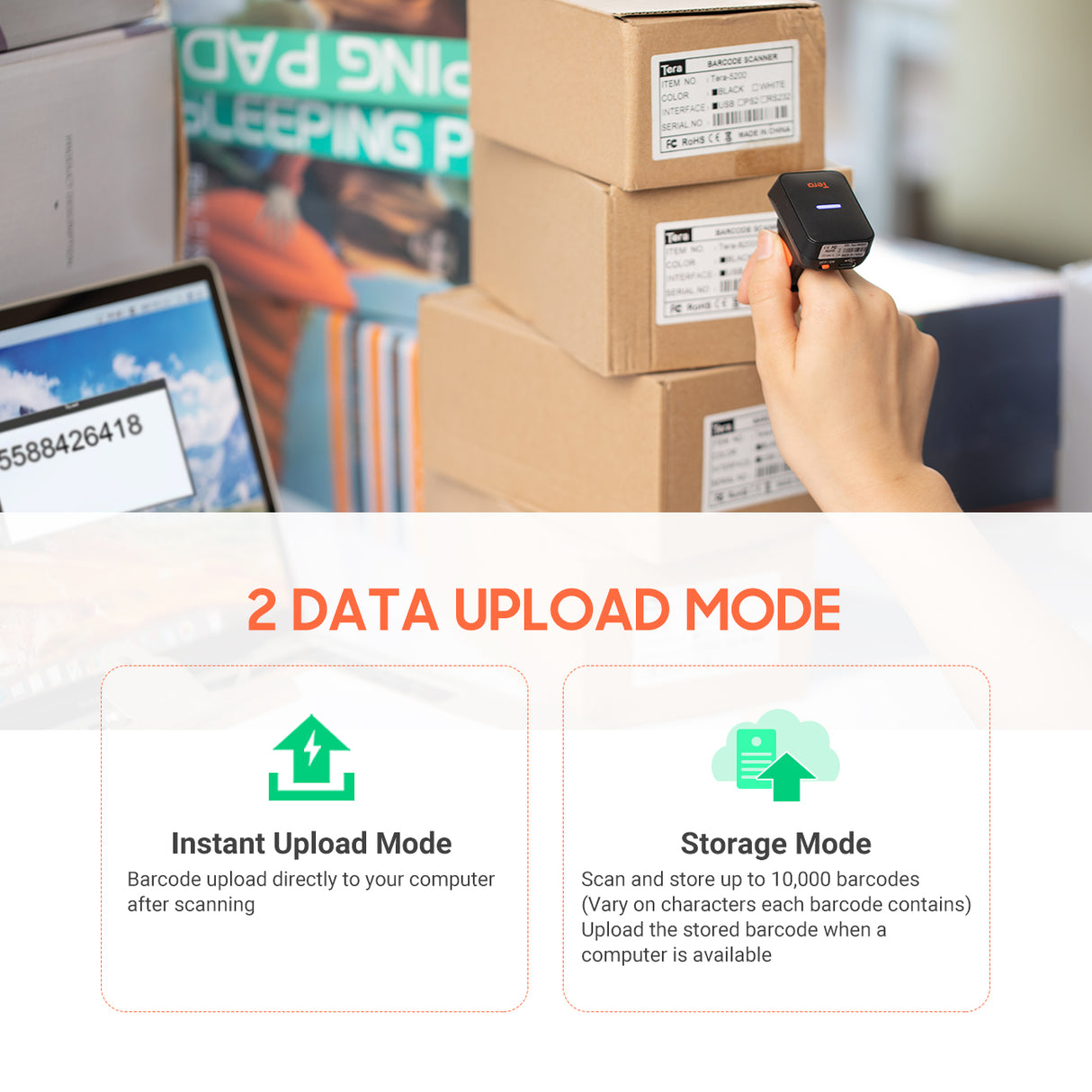

Two Data Upload Modes
- Storage Mode: Scan and store barcodes and then upload the data to your computer later on. When using the scanner out of the wireless signal range, activate the storage mode, all scanned barcodes will be stored directly into the built-in memory of the scanner.
- Instant Upload Mode: Read barcodes & upload it directly to the file you have opened.
Specification
Scanning Specs
| Resolution | ≥3mil/0.076mm（PCS90%,CODE 39） |
| Depth of Scanning Field | 30mm~500mm（depends on diffrent type of barcode) |
| Scanning Angle - Roll | ±360° |
| Scanning Angle - Pitch | ±60° |
| Scanning Angle - Skew | ±55° |
| Decoding Capability | 1D & 2D Barcodes |
| Supported Barcode Types | 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5 (Straight 2 of 5), Standard 2 of 5 (IATA 2 of 5), Codabar (NW-7), MSI, GS1 Databar (Omnidirectional, Limited, Expanded), China Post, Tepepen, Febraban Brazilian bank code, GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, etc. |
Data Transmission
| Transmission Capability | USB-KBW，Bluetooth (HID, SPP, BLE), 2.4G wireless |
| Wireless Transmission Distance | 30meters（Open distance） |
| Bluetooth Transmission Distance | 10meters |
| Notification | LED indicator, buzzer, vibration |
Electrical
| Working Voltage | DC 5V |
| Working Current | 240mA（Average Work） |
| Battery Capacity | 360mAh |
| Charging Requirement | Maximum 5V 1A |
| Charging Time | About 1.5 hours |
| Working Time | ≥2hours |
Environmental
| Working Temperature | 0℃ to 50℃ |
| Storage/Transportation | -30℃ to 60℃ |
| Humidity | 5% to 95% (non-condensation) |
Functions
| Beeper Volumn ON/OFF | √ |
| Beeper Volumn UP/DOWN | √ |
| Inverse Barcodes | √ |
| Character Case Conversion | √ |
| Scanning Mode | Manual Trigger Mode, Sensor Activated Mode |
| USB-COM/Virtual Port | √ |
| Storage Mode | √ |
| Add Prefix/Suffix | √ |
| Hide Prefix/Suffix | √ |
| GS Replacement | √ |
| Time Stamp | √ |
| Terminator | √ |
