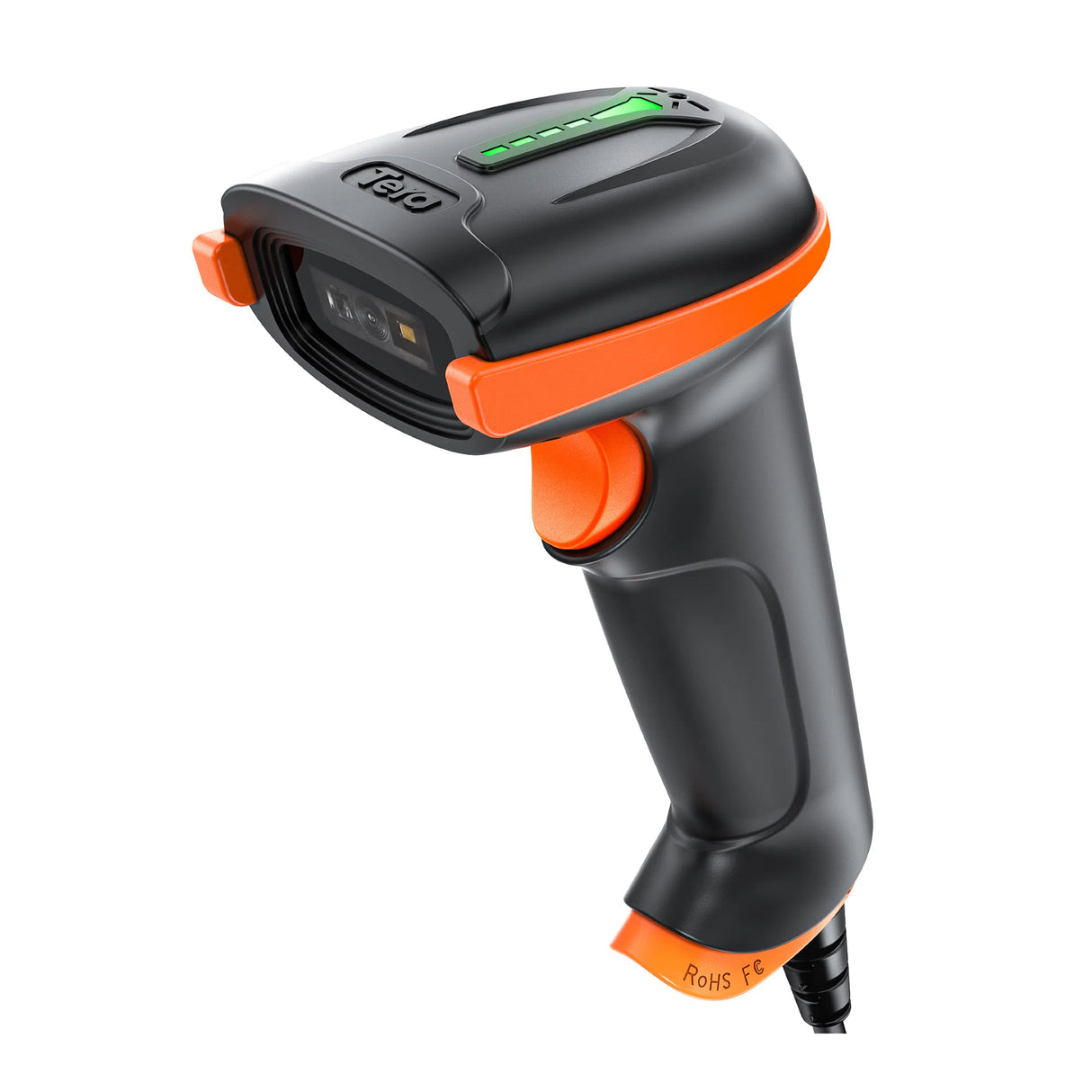

D5100Y 2D USB Barcode Scanner
D5100Y 2D USB Barcode Scanner
Couldn't load pickup availability

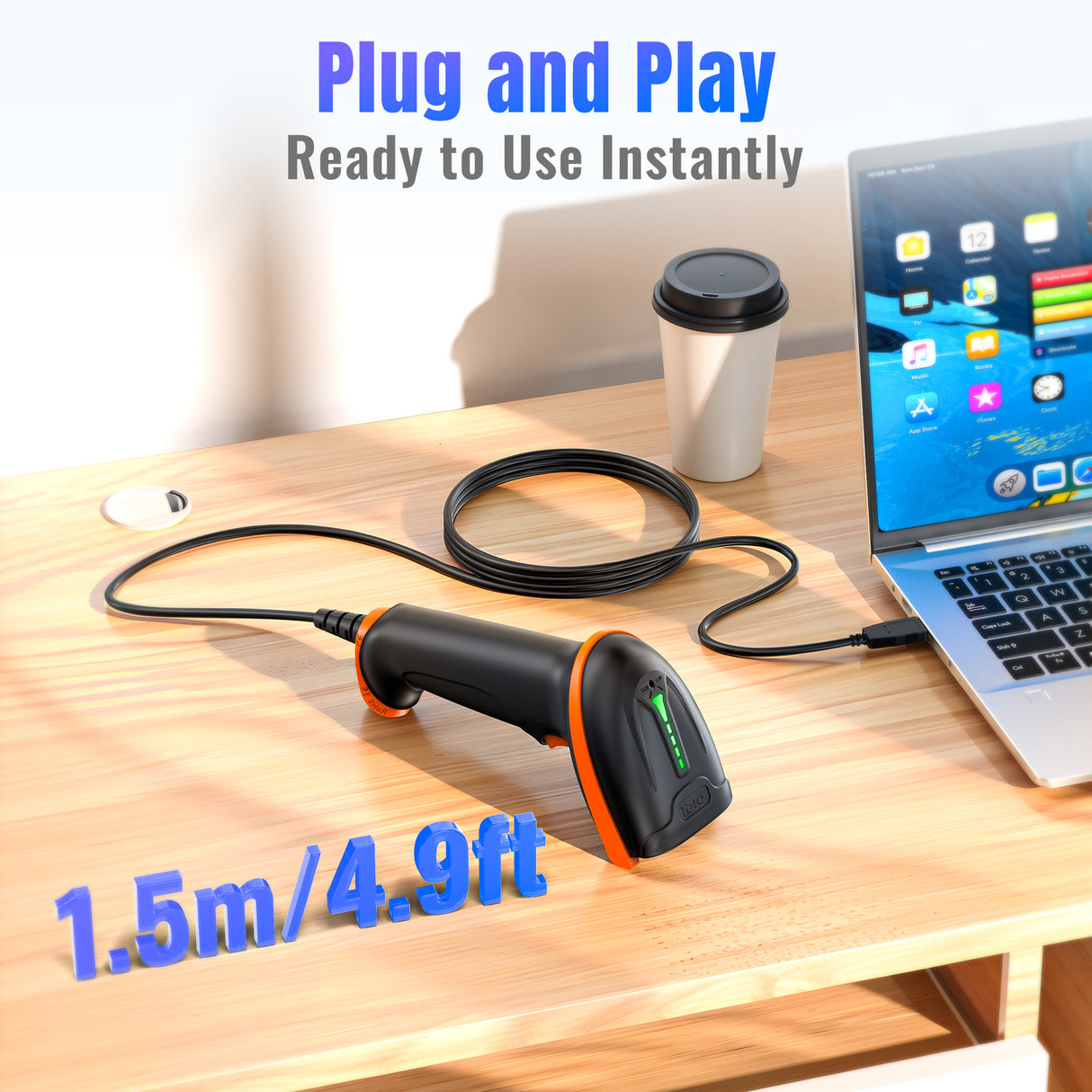

- 【Plug and Play】 Tera wired 2D barcode scanner has a USB cable for data transmission, no need to install any driver and software.
- 【Ergonomic Design】Tera ergonomic design with high-quality ABS make you feel comfortable, durable plastic material guarantees long service life.
- 【Wide Compatibility】Can be used in supermarkets, convenience stores, warehouse, library, pharmacy, retail shop for file management, inventory tracking and POS(point of sale), etc.

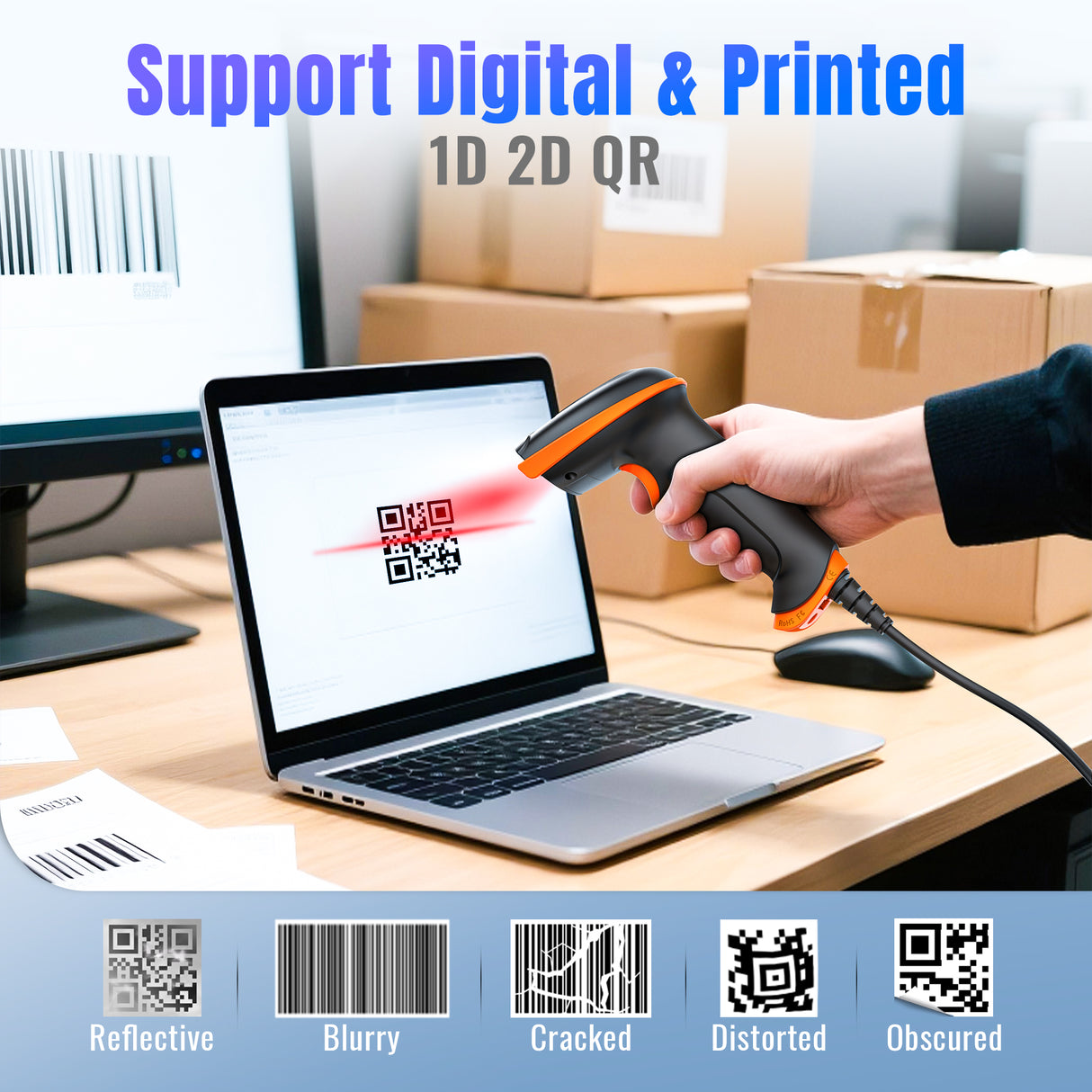

- 【Supports both Digital and Printed 1D 2D QR Bar Code Symbologies】1D barcode typeUPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5, Coda bar, MSI Plessey, GS1, China Post, Databar(RSS), Korea, NEC2 of 5,etc. 2D barcode type: QR Code, Data Matrix, PDF417, Aztec code, Maxicode.
We have perfectly matched scanner stands for Model D5100Y available for sale. If you are interested, please click on the Tera-Universal Stand at the bottom of the page to view more.
Note: Not Compatible with Square POS system.
Note: When the scan result is different from the actual number (e.g. extra characters appearing at the front), conditionally, the barcode itself is as it's scanned. It's not the quality or scanning issue of the scanner itself. Tera scanners can be modified with a setting code to hide the extra characters, please see the manual or consult us for details.

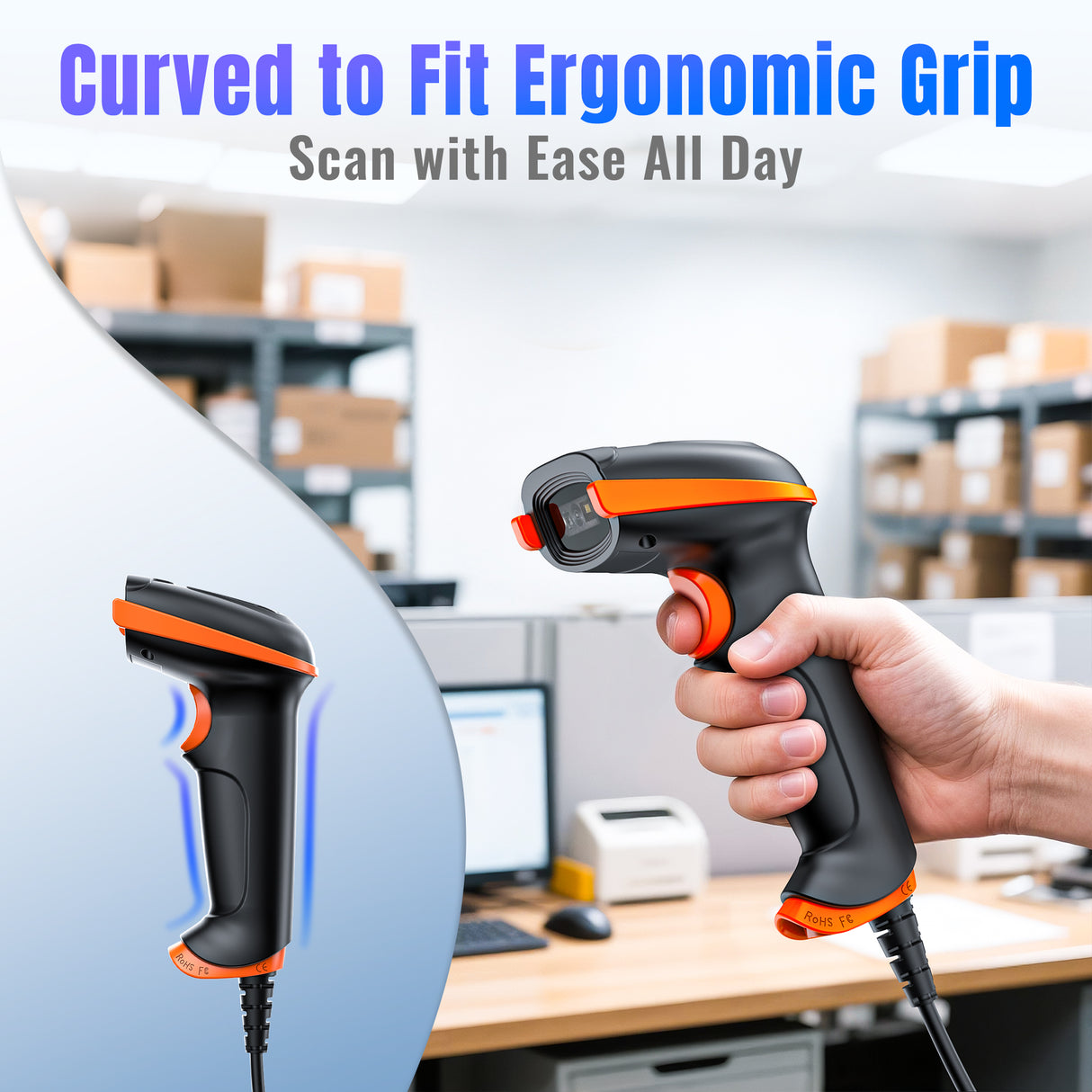

Ergonomic Design -- Several design elements are integrated into the upgraded Tera L5100Y. The scanner handle is extended by 0.3 inches (8mm) and thickened, along with the specially designed curve, making it much more comfortable for US customers to hold this product for a long time. The trigger is designed to be smooth and flat for a better grip feeling.

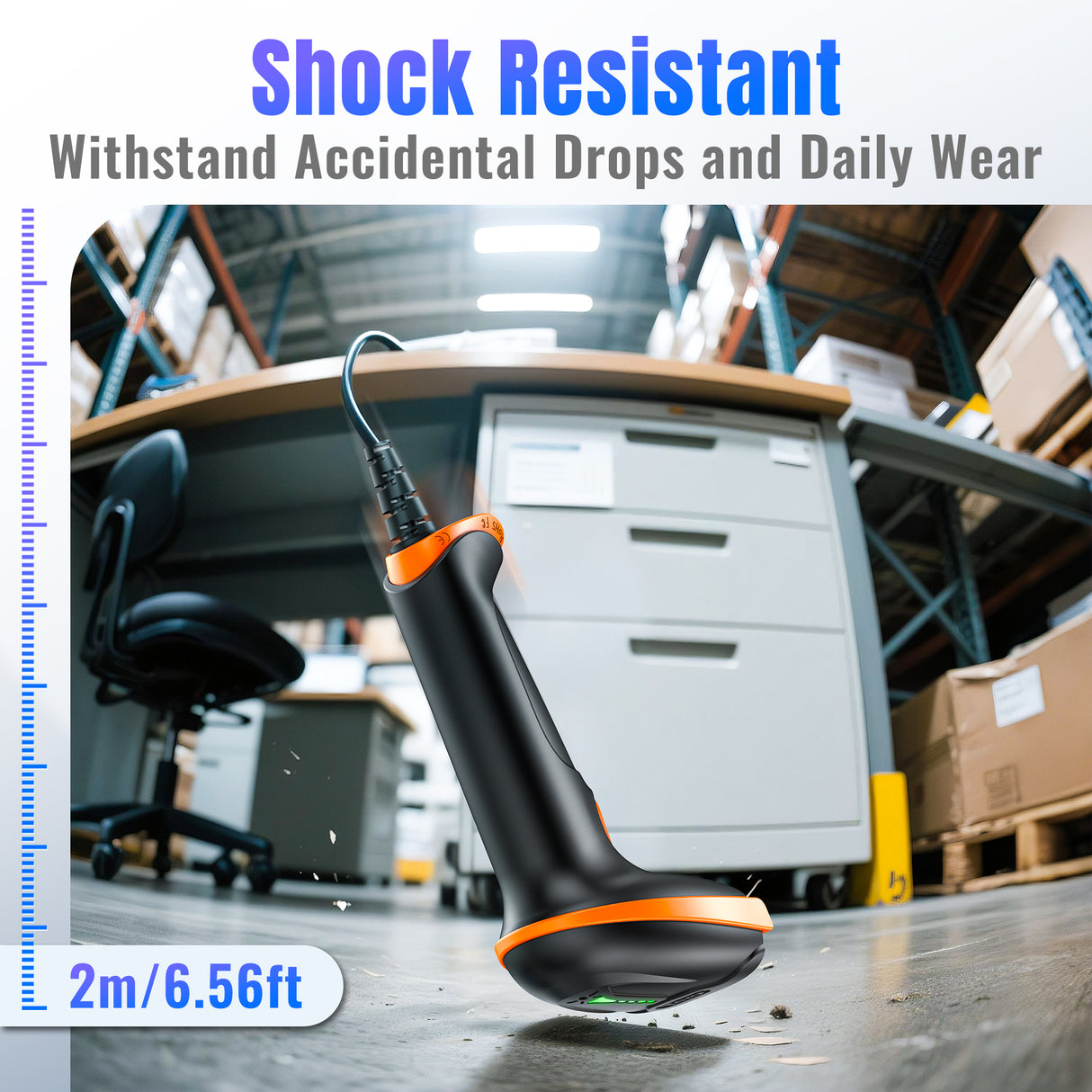

Anti-Shock Silicone – The orange anti-shock silicone provides complete protection for your scanner, avoiding collision damage or break while falling off your desk or shelf. IP54 technology protects the scanner from dust.
Support Extended Functions
- Support extended functions such as adding or hiding characters, add prefix and suffix, etc.

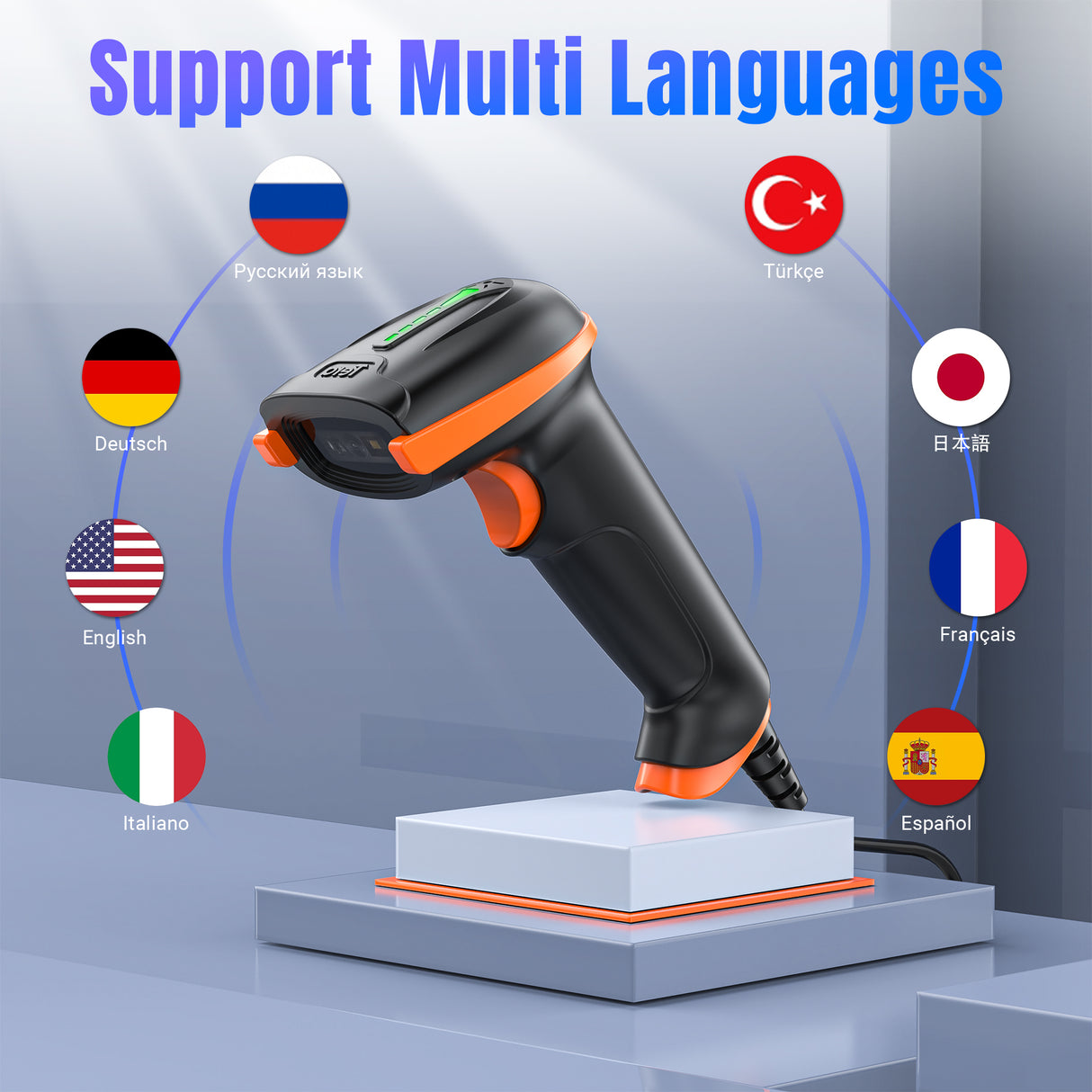

Support 25 Languages
- Support multiple languages including English, Spanish, German, French, Italian, Japanese, etc.
- To get the correct output, make the scanner's keyboard language consistent with your computer's keyboard language.
- The scanner's factory default language is English.
2 Scanning Modes
- Key trigger mode
- Continuous mode
Specification
Scanning Specs
Resolution | ≥3mil/0.076mm(PCS90%,CODE 39) |
Depth of Scanning Field | 30mm~330mm |
Scanning Angle - Roll | ±360° |
Scanning Angle - Pitch | ±60° |
Scanning Angle - Skew | ±70° |
Decoding Capability | 1D & 2D Barcodes |
Supported Barcode Types | Airline 2 of 5、Codaba、Codablock A、Code 128、Code 11、Code 32、Code 39、Code93、EAN/UPC、EAN-8、EAN-8 to EAN-13、EAN-13、Full SACII Code39、GS1DataBar Expanded、GS1DataBar Limited、GS1DataBar Omnidirectional、HongKong 2 of 5(China post)、Interleaved 2 of 5、RSS-14、RSS-LIMITED、RSS-EXPANDED、Straight 2 of 5 Industrial、Telepen、Trioptic Code、UPC-A、UPC-E、UPCE、Codablock F、Pharmacode、MSI、Matrix 2 of 5、Composite、Data Matrix Code、HANXIN、Maxicode、MicroPDF417、Micro QR code、PDF417、QR Code、Aztec Code、DOT_CODE |
Data Transmission
Transmission Capability | Wired USB |
Wireless Transmission Distance | NA |
Bluetooth Transmission Distance | NA |
Notification | LED indicator light, buzzer |
Electrical
Working Voltage | DC 5V |
Working Current | 300mA(Max) |
Battery Capacity | NA |
Charging Requirement | Maximum 5V 1A |
Charging Time | NA |
Working Time | NA |
Environmental
Working Temperature | -20℃ to 50℃ |
Storage/Transportation | -30℃ to 60℃ |
Humidity | 5% to 95% (non-condensing) |
Functions

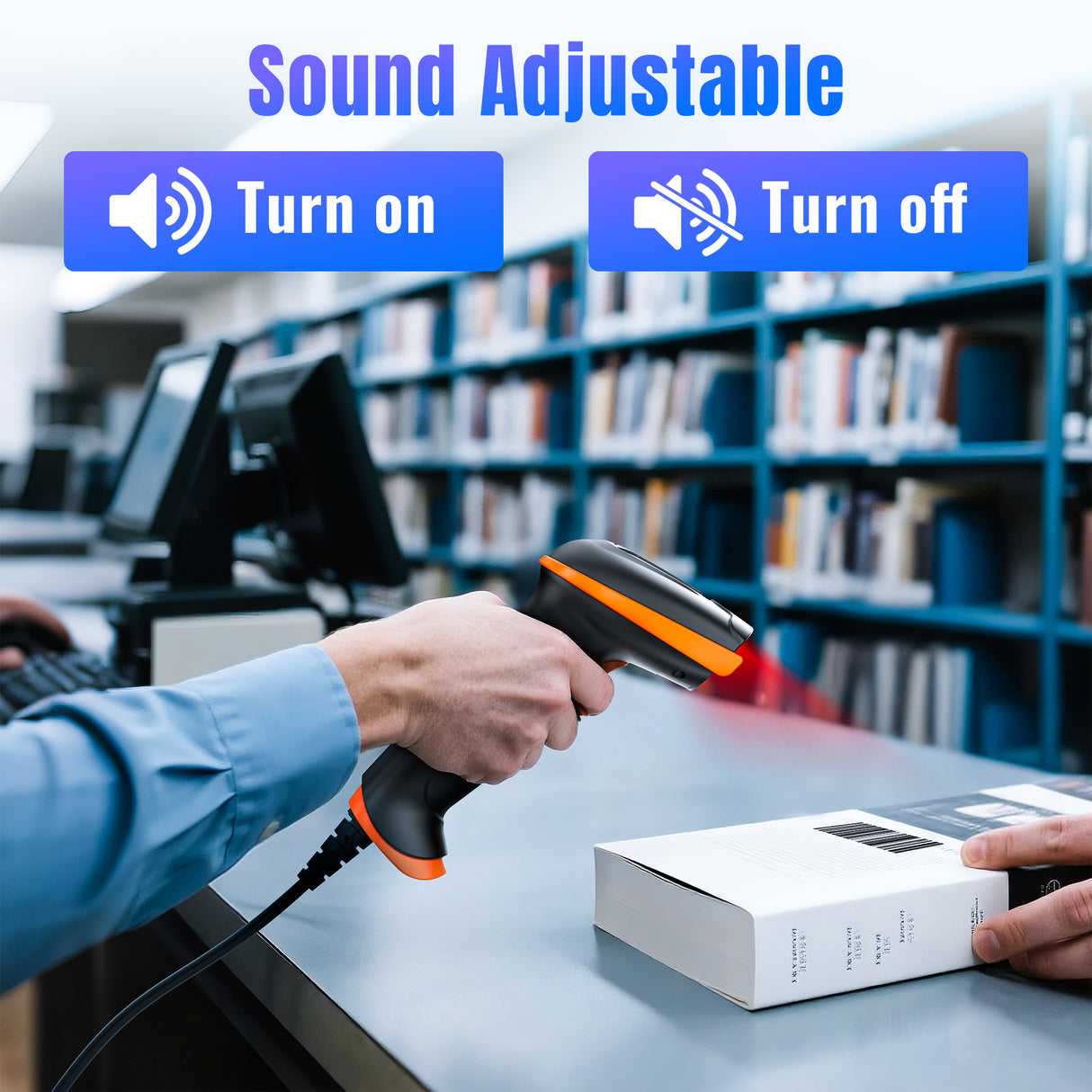

Beeper Volumn ON/OFF | √ |
Beeper Volumn UP/DOWN | √ |
Inverse Barcodes | √ |
Character Case Conversion | √ |
Scanning Mode | Manual Trigger Mode, Continuous Scanning Mode,Sensor Activated Mode |
USB-COM / Virtual Port | √ |
Storage Mode | × |
Add Prefix/Suffix | √ |
Hide Prefix/Suffix | √ |
GS Replacement | √ |
Time Stamp | × |
Terminator | √ |
